Tube Quantity (pcs)

10

15

18

20

25

30

Water Tank

Net Capacity (L)

100

150

180

200

250

300

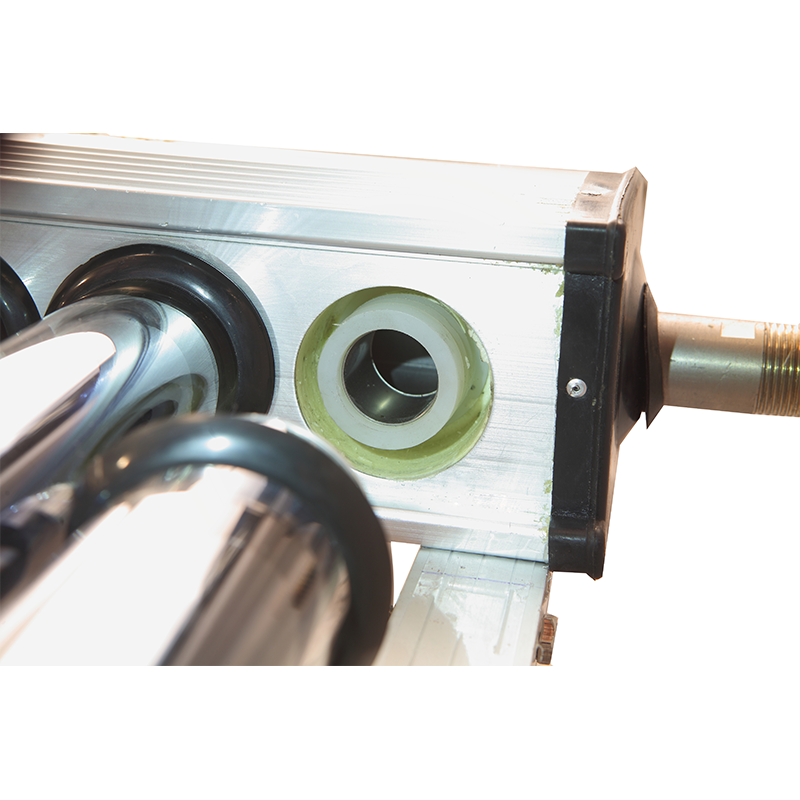

Manifold shell

High-quality black/ gray aluminum alloy 2mm

Material Of Outer Tank

SUS304 / Color Steel Plate

Material Of Insulation

High-density compression-moulded rockwool 50mm

Vacuum Tube

Red   copper heat pipe, three-target glass tube, aluminum fin and heat-resisting   silicon seal

Test pressure

11 Bar/1.1Mpa

       Anti-freezing   Weather

< (-)40 ℃

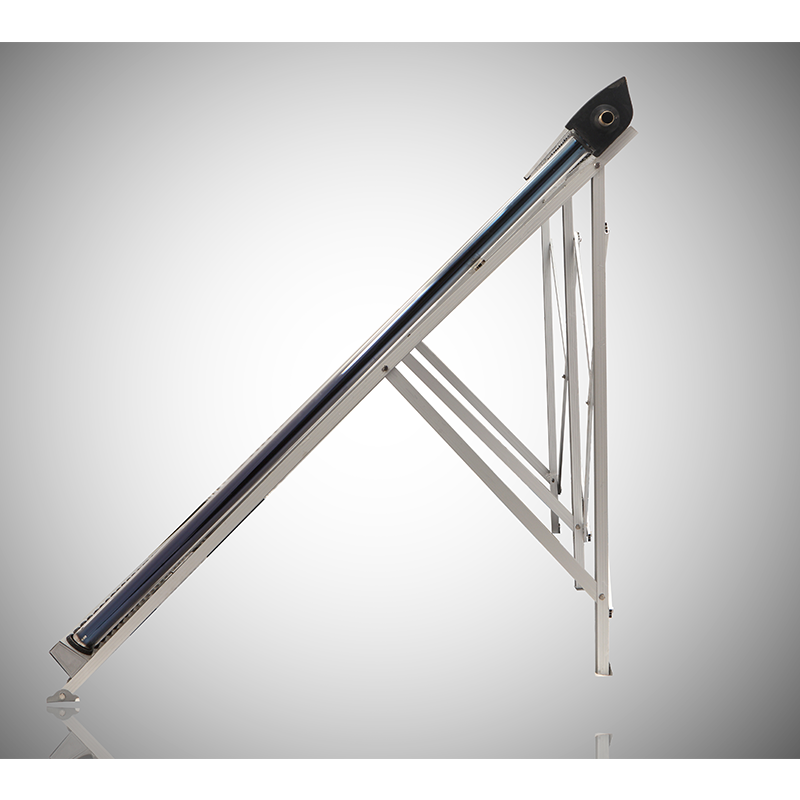

Mounting Frame

lack/ gray aluminum alloy 1.8mm, universal   bracket suitable for roof or exterior wall installation

Angle

20°~90°(Vertical/   horizontal   shift: -5°/-5°)

Item Size

Aperture Area(M2)

0.94

1.41

1.87

2.24

2.34

Insulation(mm)

50

50

50

50

50

Container loading qty/40HC

100

93

73

71

61
