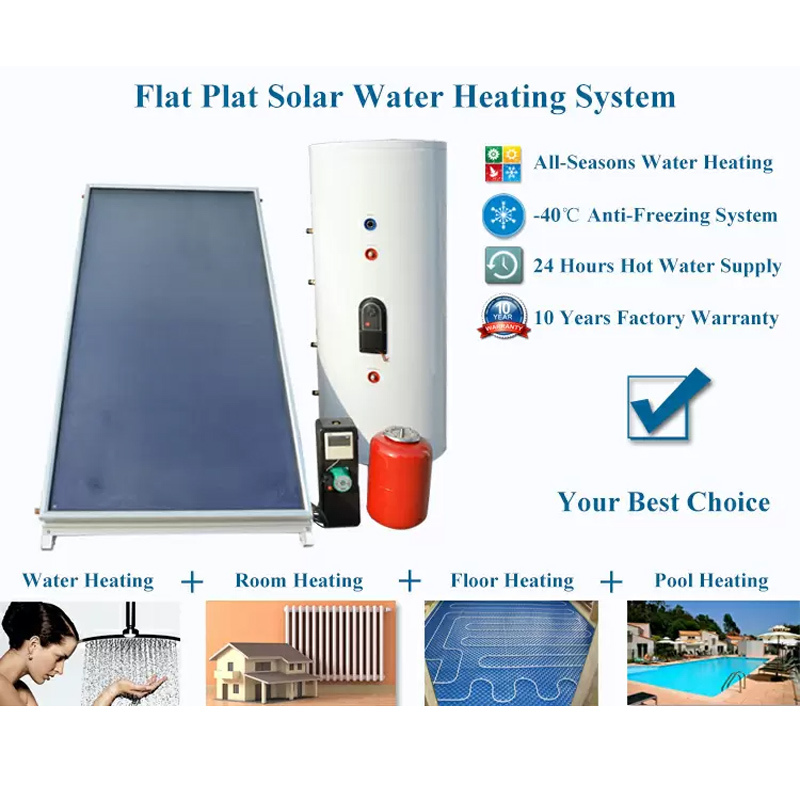

Split closed loop pressurized flat heat panel solar water heater

Products Detail

Tel:+86-0757-85496583
Wechat:+86-18367537710
Whatsapp:+86-18367537710

Chat Now

Details

Parameters

Download

Features:

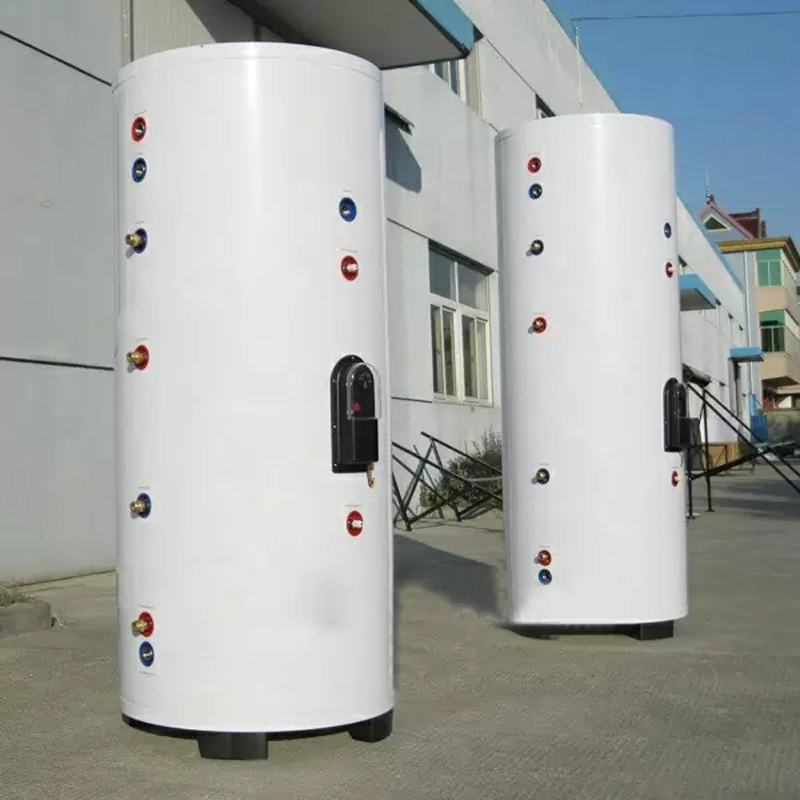

Tank Exterior Shell: High-quality white coated color steel 0.5-0.6mm
Tank Insulation: High-density polyurethane integrated foam-forming with lasting heat preservation
Max working pressure (0.6MPa)
Flat Plate: Black chrome ,All copper, Size(mm) 2000*1000*80/2000*1250*80/2000*1500*80
Heat-pipe Manifold: Red copper header Φ35X1.0mm, Aluminium alloy shell 2mm, high-density rockwool insulation

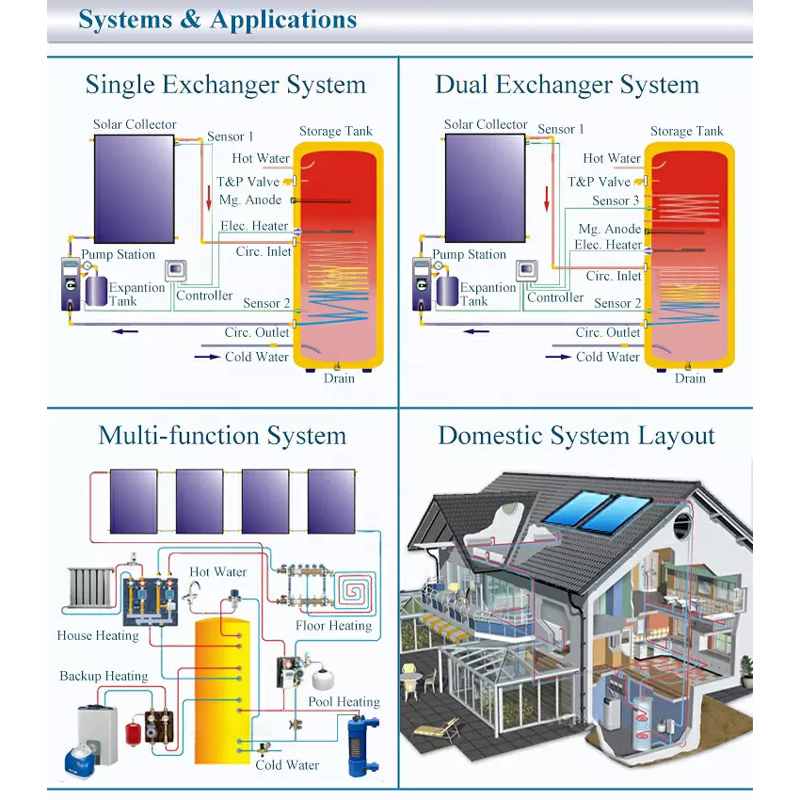

Solar Pump Station & Expansion vessel: Double pipeline pump station SP226, high pressure expansion vessel 5L-50L
Collector Bracket: Gray/ black aluminium alloy 1.8mm, universal bracket suitable for slope/ flat roof or wall installation
Accessories: Thermostat electrical heater with regulator, Anode magnesium, T/P & Safety valve, copper connectors
Anti-freezing Weather: < (-)40 ℃

Model	SYSPS-10	SYSPS-15	SYSPS-20	SYSPS-25	SYSPS-30	SYSPS-40	SYSPS-50	SYSPS-60	*SYSPS-70*	*SYSPS80*	*SYSPS100*
Panel Quantity (pcs)	1	1	1	1	2	2	2	4	3	5	7
Net Capacity (L)	100	150	200	250	300	400	500	600	700	800	1000
Material Of Inner Tank (mm)	Food-grade stainless steel SUS304-2B 1.5-2.0mm (150-300L), 2.0-2.5mm (400-1000L).
Material Of Insulation	High-density polyurethane integrated foam-forming with lasting heat preservation
Flat panel	Black chrome ,All copper
Size option(mm)	2000100080/2000125080/2000150080
Heat Exchange Coil	Double heat-exchange copper coil Φ12X1.0mm
Frame	2 Feets ( Left-To-Right )				3 Feets ( Left-Middle-Right )
Angle	45°
Item Size
Aperture Area(M2)	2.0	2.0	2.5	3.0	4.0	5.0	6.0	8.0	9.0	10.0	14.0
Insulation(mm)	50	50	50	50	50	50	50	50	50	50	50
Container loading qty/40HC	100	93	73	61	53	40	28	24	22	20	16
