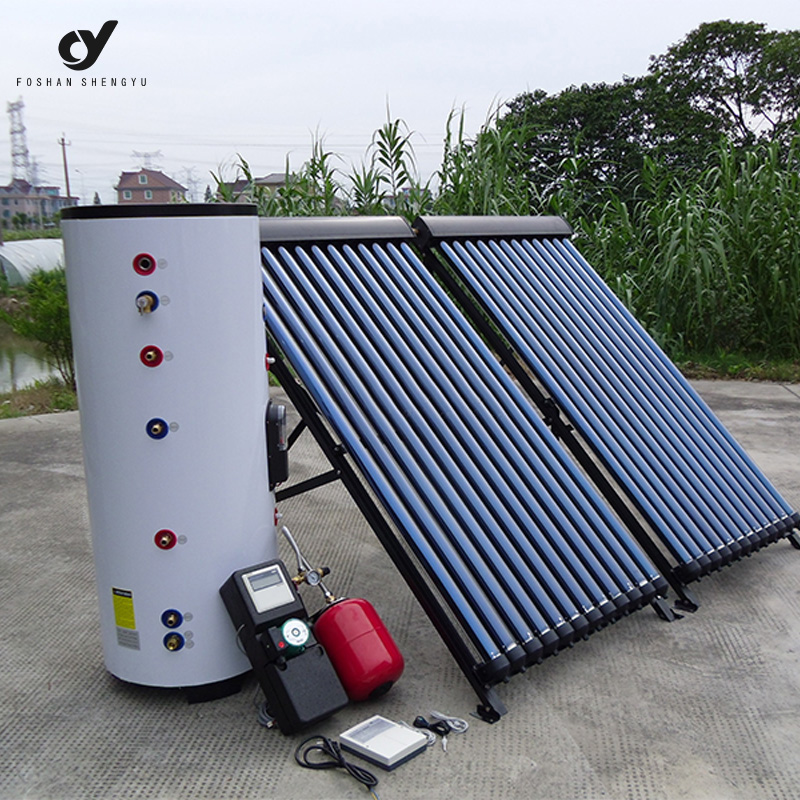

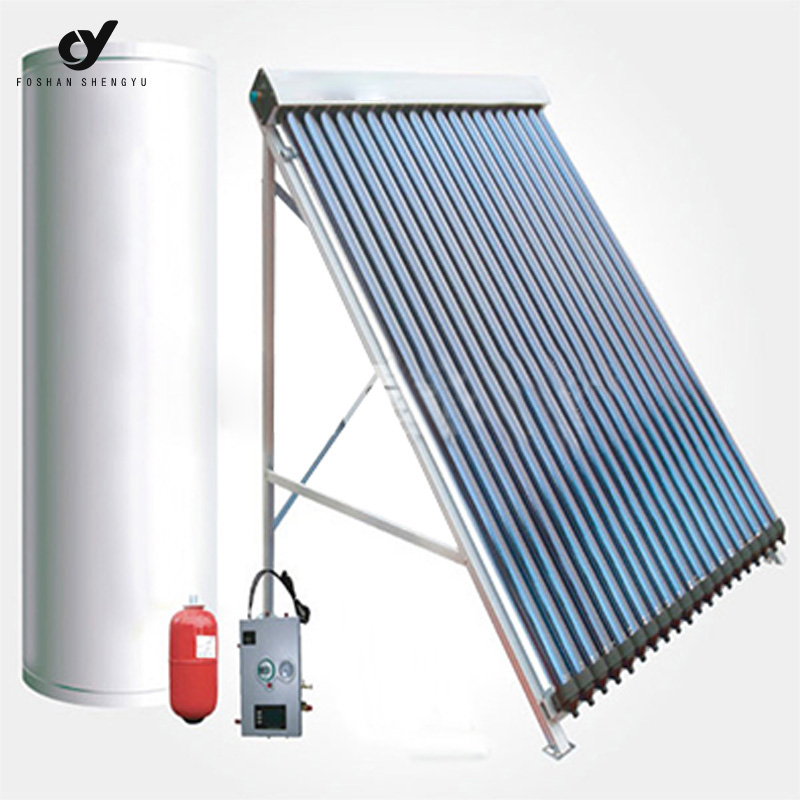

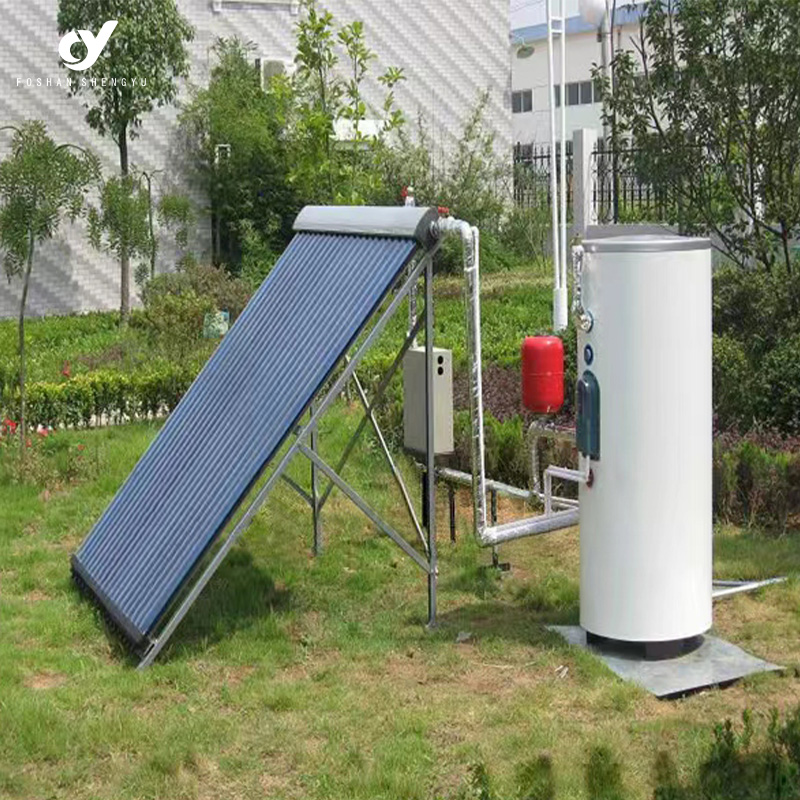

1.0Mpa working pressure split pressurized heat pipe solar water heater

Tel:+86-0757-85496583
Wechat:+86-18367537710
Whatsapp:+86-18367537710

Chat Now

Details

Parameters

Download

Features:

l Inner Storage Tank: Food-grade stainless steel SUS304-2B 1.5-2.0mm (150-300L), 2.0-2.5mm (400-1000L).

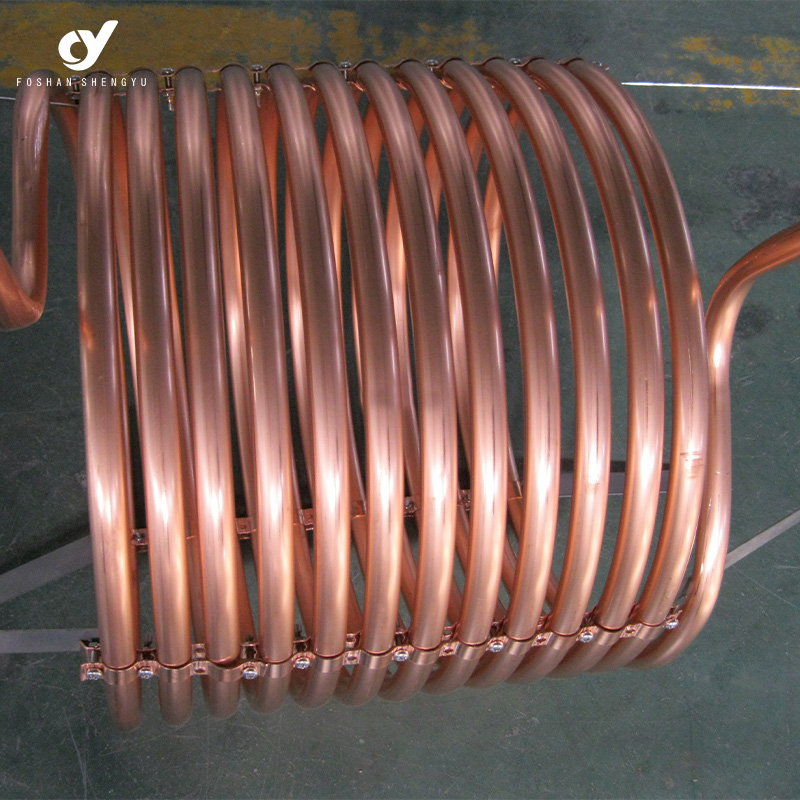

l Heat-exchange Coil: single heat-exchange copper coil Φ12X1.0mm

l Tank Exterior Shell: High-quality white coated color steel 0.5-0.6mm

l Tank Insulation: High-density polyurethane integrated foam-forming with lasting heat preservation

l Max working pressure (0.6MPa)

l Heat-pipe Manifold: Red copper header Φ35X1.0mm, Aluminium alloy shell 2mm, high-density rockwool insulation

l Collector Bracket: Gray/ black aluminium alloy 1.8mm, universal bracket suitable for slope/ flat roof or wall installation

l Anti-freezing Weather: < (-)40 ℃

Model	SYSH-10	SYSH-15	SYSH-20	SYSH-20	SYSH-25	SYSH-30	SYSH-40	SYSH-50
Tube Quantity (pcs)	10	15	20	20	25	30	40	50
Water Tank
Net Capacity (L)	100	150	200	200	250	300	400	500
Material Of Inner Tank (mm)	SUS304-2B / SUS316L
Material Of Outer Tank	SUS304 / Color Steel Plate
Material Of Insulation	Polyurethane
Vacuum Tube	Red copper heat pipe, three-target glass tube, aluminum fin and heat-resisting silicon seal
Diameter/Length(mm)	Φ58 / 1800
Material	High Borosilicate Glass3.3
Frame	2 Feets ( Left-To-Right )				3 Feets ( Left-Middle-Right )
Angle	45°
Item Size
Aperture Area(M2)	0.94	1.41	1.87	2.24	2.34	3.37	3.74	5.6
Insulation(mm)	50	50	50	50	50	50	50	50
Container loading qty/40HC	100	93	73	71	61	49	40	28
