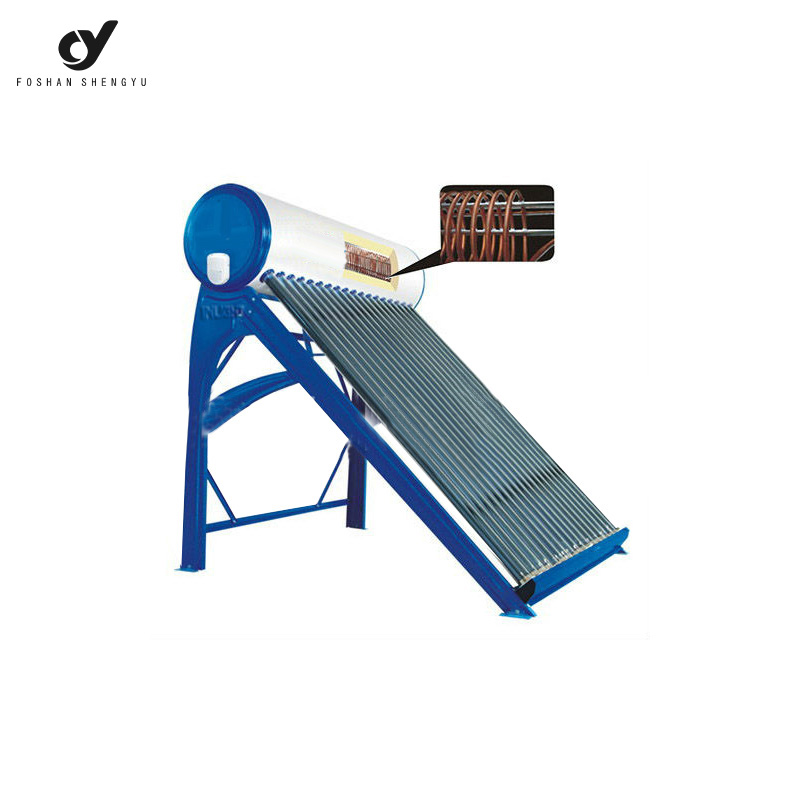

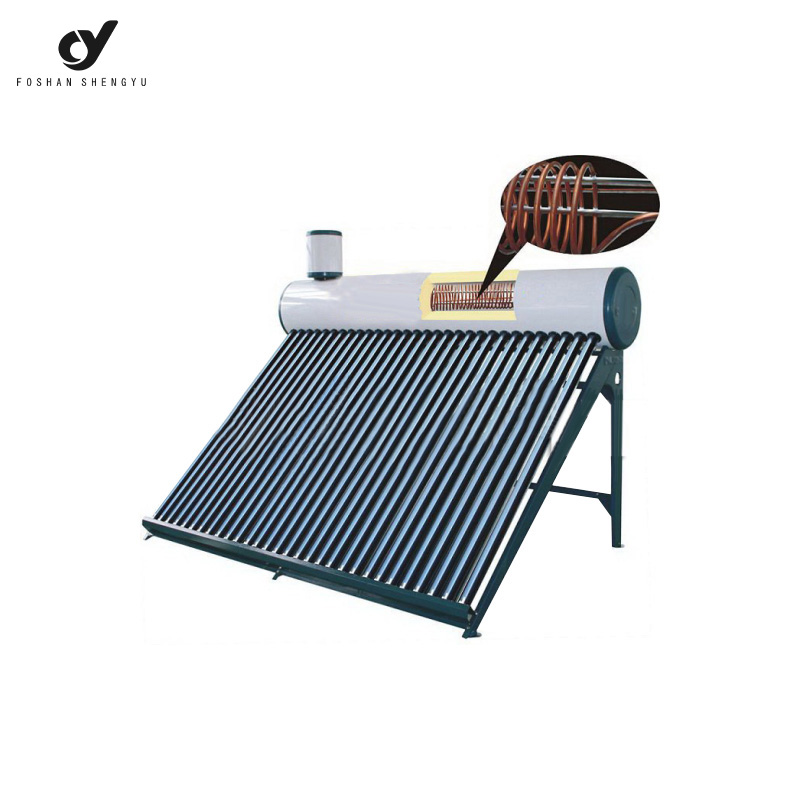

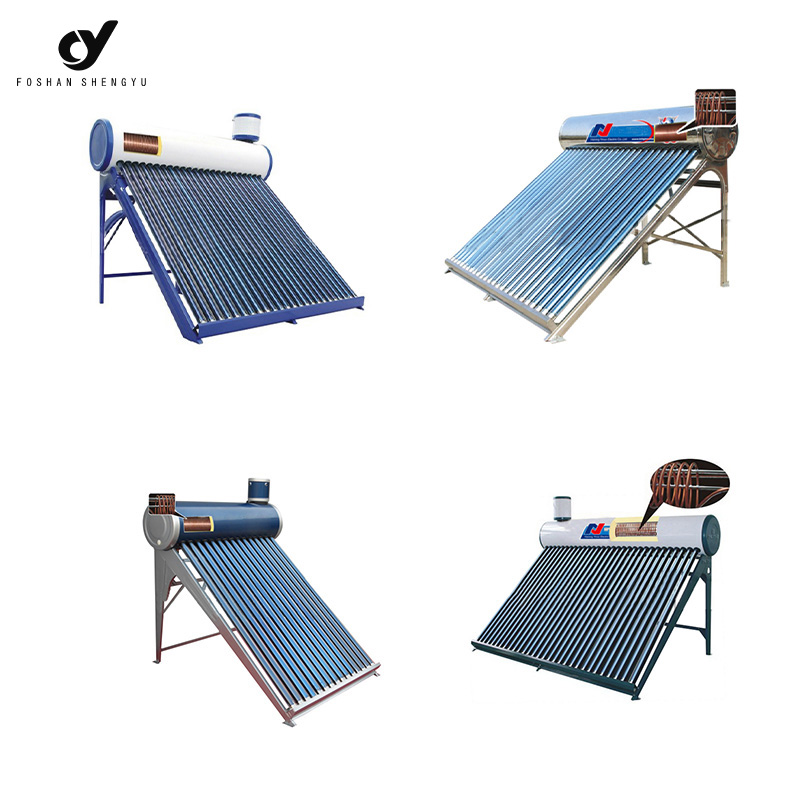

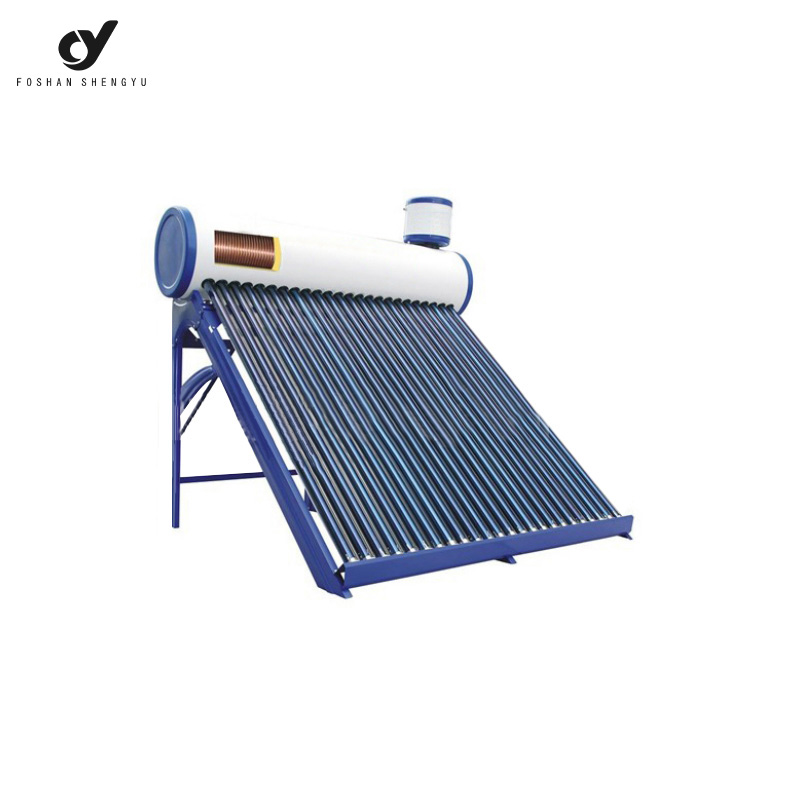

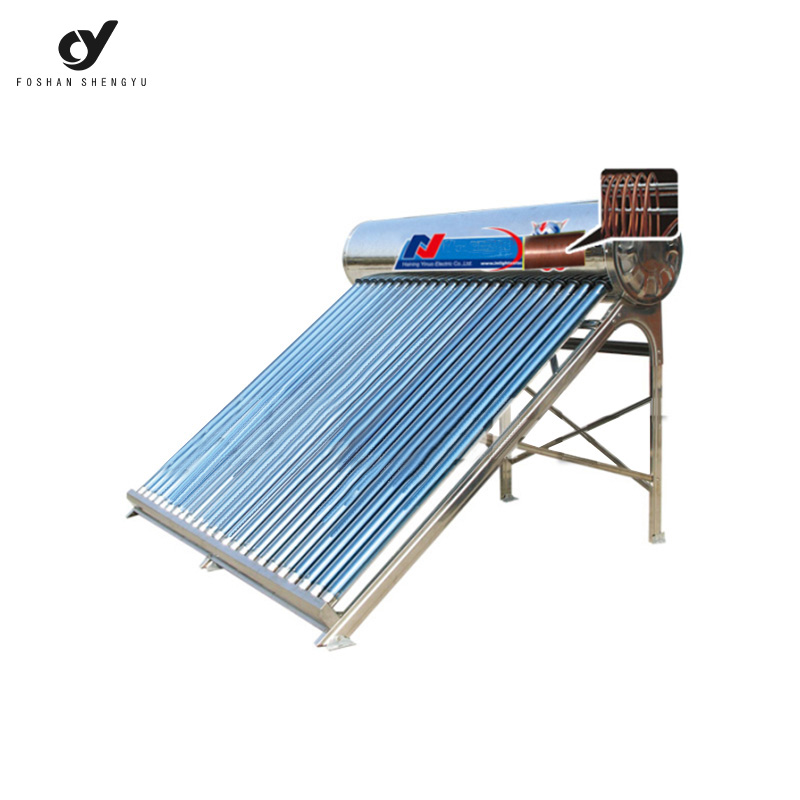

Integrated pressurized heat pipe solar water heater

Products Detail

Tel:+86-0757-85496583
Wechat:+86-18367537710
Whatsapp:+86-18367537710

Chat Now

Details

Parameters

Download

Features:

l The water will not flow into the tubes directly, the system will still work even the tube broke.

l -40℃ Anti-freezing, all-year-round service even in extremely cold area

l Optional Devices:Electric heater, Intelligent Controller, Anode magnesium bar

l Accessories:Stainless bolts & nuts, Dustproof rubber seal, Adjustable plastic tube holder

l Max working pressure (0.6MPa)

Model	SYCH-10	SYCH-15	SYCH-18	SYCH-20	SYCH-24	SYCH-30	SYCH-36
Tube Quantity (pcs)	10	15	18	20	24	30	36
Water Tank
Net Capacity (L)	100	150	180	200	240	300	360
Material Of Inner Tank (mm)	SUS304-2B / SUS316L
Material Of Outer Tank	SUS304 / Color Steel Plate
Material Of Insulation	Polyurethane
Vacuum Tube	Red copper heat pipe, three-target glass tube, aluminum fin and heat-resisting silicon seal
Diameter/Length(mm)	Φ58 / 1800
Material	High Borosilicate Glass3.3
Frame	2 Feets ( Left-To-Right )				3 Feets ( Left-Middle-Right )
Angle	45°
Item Size
Absorber Area(M2)	0.94	1.41	1.70	1.89	2.26	2.83	4.9
Packing CBM/SET	0.39	0.56	0.68	0.75	0.86	1.1	1.26
Insulation(mm)	50	50	50	50	50	50	50
Container loading qty/20GP	72	50	41	37	33	25	22
Container loading qty/40HC	174	121	100	91	79	62	54
