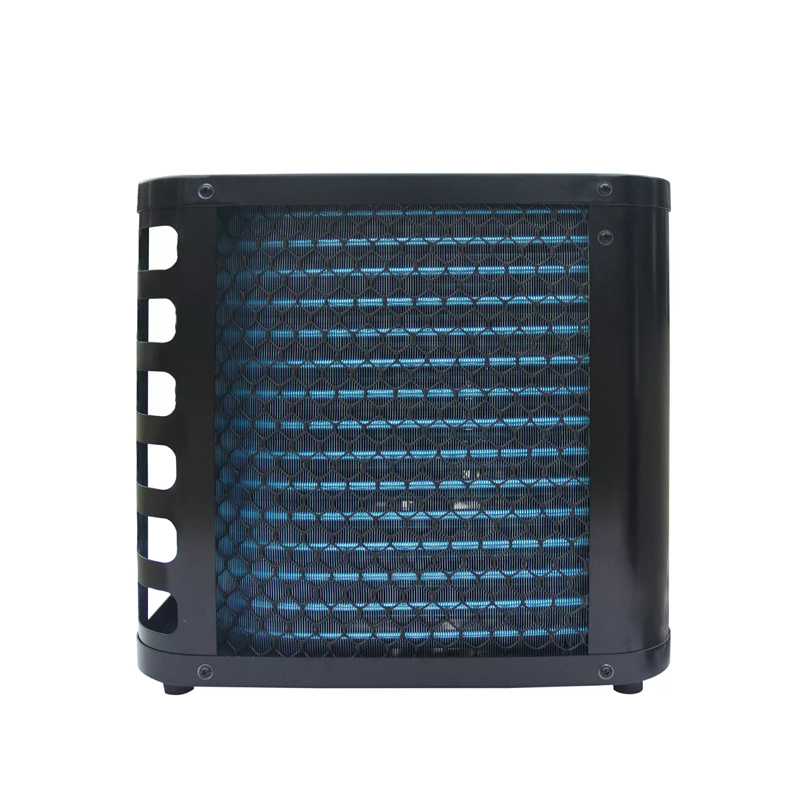

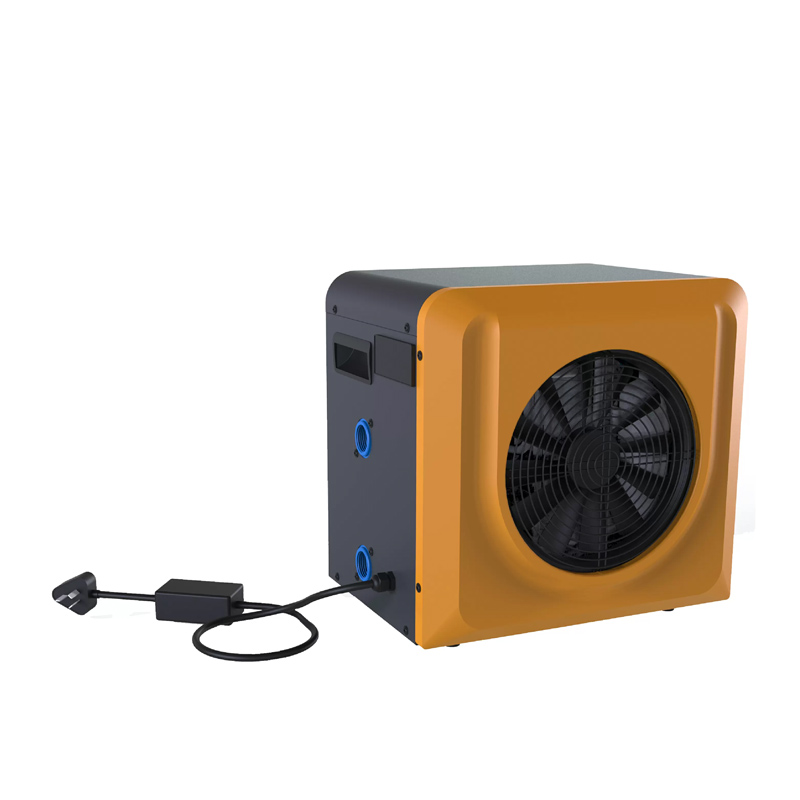

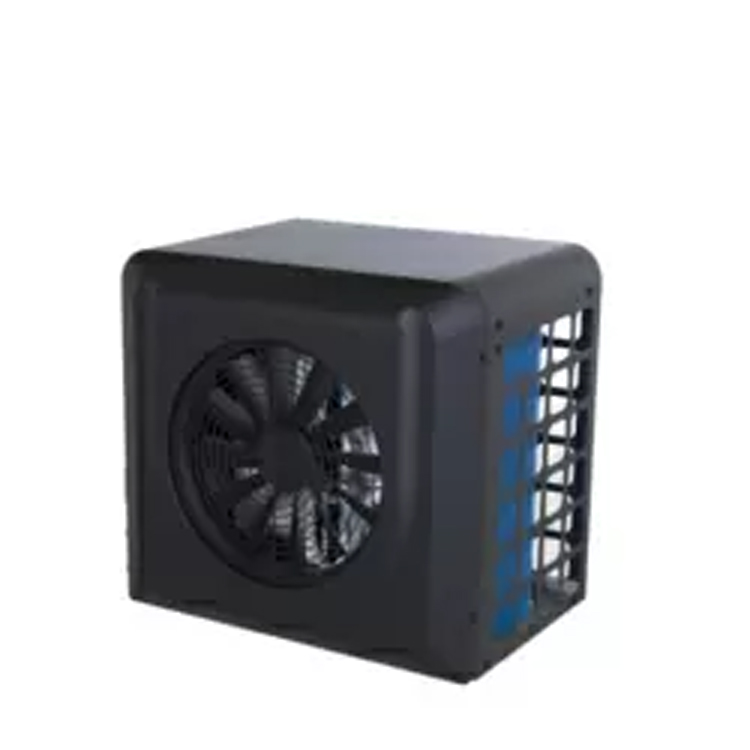

3-5kw Heating and Cooling Mini Swimming Pool Air Source Water Heater Boiler Air To Water Heat Pump Water Heater SY-TB1

Product Details:
PRICE:$510-$1400/Piece
Negotiable price:According to different size and quantity

Heating capacity:3KW-5KW

Advised pool size :0-20

Certificate:ROHS/CE/ISO/CCC

After-sale guarantee: One year full warranty

MOQ: 100PCS/Color

Email : info@syheatpump.com

Tel:+86-0757-85496583
Wechat:+86-18367537710
Whatsapp:+86-18367537710

Chat Now
Details
Parameters
Download

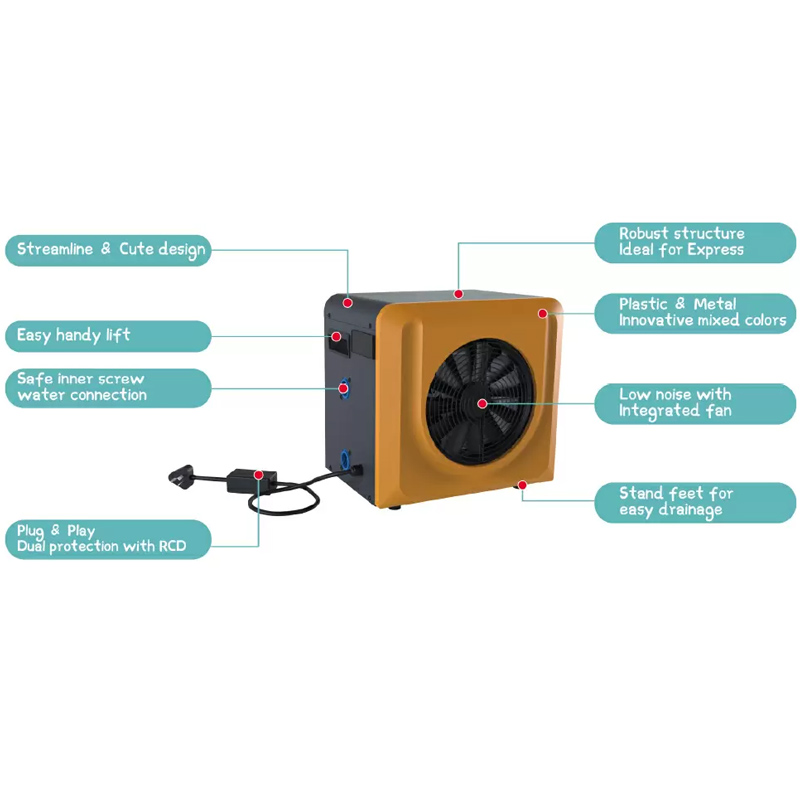

Features:

R32 new refrigerant.

True Mini. 900+ Pcs for 40HC. COP up to 5.2

Removable 38/32mm connection.

Water flow switch available.

Low noise with Integrated fan

Robust structure ideal for express

Stand feet for easy drainage

Product Details



Product Advantage

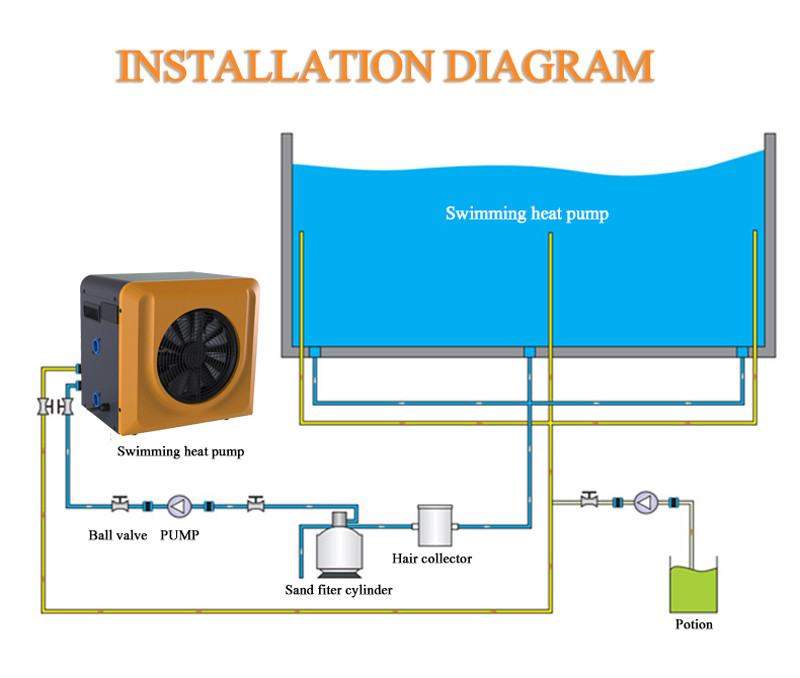

Install and Run


Factory Profile



Global Customers


Testing and certification


FAQ

Q1 Are you a manufacturer?

A: Yes, we are a professional heat pump manufacturer with rich experience and complete R&D,production,sales and service supply.


Q2: What is your main product?

Answer: Our main products include DC variable frequency heat pumps, air source heat pump water heaters, swimming pool heat pumps,and EVI heat pumps in cold areas.


Q3: How to place an order?

Answer:Please send us an inquiry or contact us through online services; after receiving your inquiry, we will reply to you

Catalogs,quotations and other information you need.


Q4: Do you provide OEM/ODM customized manufacturing services?

Answer: Yes, we warmly welcome your heat pump OEM/ODM opportunities. We can produce European standard heat pumps under your brand according to yourspecial needs.


Q5: Can I apply to become your heat pump distributor/distributor?

A: Yes, we are currently looking for more heat pump distributors/distributors worldwide, who can distribute our heat pump products in local countries/regions.


Q6: I need to buy in large quantities. Can you provide sample service?

Yes, we can provide sample service, and we have engineers to help you solve installation problems


Technical Data

Model No.

SY-003TB1

SY-004TB1

SY-005TB1

* Heating Capacity at Air 26℃, Humidity 80%, Water 26in, 28out

Heating Capacity (kW)

3.00

4.00

5.00

Power Input (kW)

0.58

0.77

0.97

COP

5.17

5.20

5.17

* Heating Capacity at Air 15℃, Humidity 70%, Water 26in, 28out

Heating Capacity (kW)

2.30

2.90

3.85

Power Input (kW)

0.55

0.69

0.92

COP

4.18

4.20

4.18

* General data

Power supply

220~240V/1/50Hz

Max Power Input (kW)

0.70

0.90

1.14

Max Current (A)

3.2

4.8

5.8

Water Flow Volume (m3/h)

1.5

2.0

2.5

Advised pool size m3

0~10

5~16

8~20

Refrigerant

R32

Water connection (mm)

32 or 38

Heat Exchanger

Titanium

Air Flow Direction

Horizontal

Working temp. range (℃)

12~43

Casing Material

ABS+Metal

Noise level dB(A)

45

46

48

Net Weight (kg)

18

22

26

Gross Weight (kg)

20

24

30

Net Dimensions (mm)

380*290*370

420*365*440

Package Dimensions (mm)

440*355*400

480*435*490
