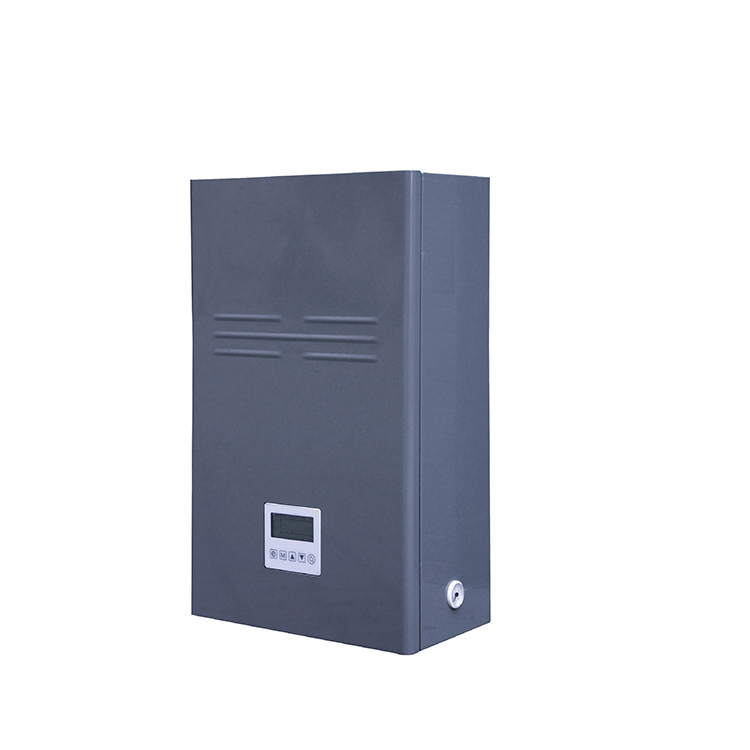

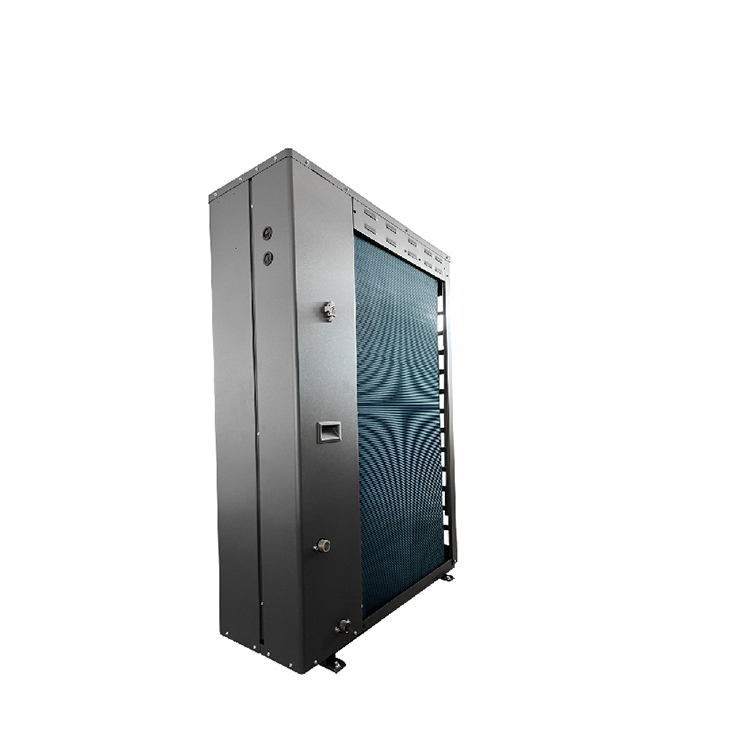

SPLIT HEAT PUMP CHD-TA1S 220V 12.3KW&20.5KW and CHD-TA3S 380V 20.5KW

Product Details:
PRICE:$500-$1300/Piece
Negotiable price:According to different size and quantity

Heating capacity:4.3KW-20.5KW

Cooling capacity:2.5KW-16.5KW

Certificate:ROHS/CE/ISO/CCC

After-sale guarantee: One year full warranty

MOQ: 100PCS/Color

Email : info@syheatpump.com

Tel:+86-0757-85496583
Wechat:+86-18367537710
Whatsapp:+86-18367537710

Chat Now
Details
Parameters
Download

Features:

Energy class: A+++

Heating+Cooling+DHW

Full DC inverter Panasonic compressor and fan motor

-30 inverter EVI

WIFI smart control

R410 refrigerant,low GWP(GWP=3)

Outlet water temperature up to 55



Product Details





Product Advantage




Install and Run


Factory Profile



Global Customers


Testing and certification


FAQ

Q1 Are you a manufacturer?

A: Yes, we are a professional heat pump manufacturer with rich experience and complete R&D,production,sales and service supply.


Q2: What is your main product?

Answer: Our main products include DC variable frequency heat pumps, air source heat pump water heaters, swimming pool heat pumps,and EVI heat pumps in cold areas.


Q3: How to place an order?

Answer:Please send us an inquiry or contact us through online services; after receiving your inquiry, we will reply to you

Catalogs,quotations and other information you need.


Q4: Do you provide OEM/ODM customized manufacturing services?

Answer: Yes, we warmly welcome your heat pump OEM/ODM opportunities. We can produce European standard heat pumps under your brand according to yourspecial needs.


Q5: Can I apply to become your heat pump distributor/distributor?

A: Yes, we are currently looking for more heat pump distributors/distributors worldwide, who can distribute our heat pump products in local countries/regions.


Q6: I need to buy in large quantities. Can you provide sample service?

Yes, we can provide sample service, and we have engineers to help you solve installation problems



Technical Data

Model

HCD-012TA1S

HCD -018TA1S

HCD -018TA3S

Power supply

V/Ph/Hz

220-240/1/50

380-415/3/50

Performance Condition: Outdoor air 7℃ / 6℃, Inlet / Outlet water 30℃ / 35℃



Heating

Capacity (min-max)

kW

4.3 ~ 12.3

6.7 ~ 20.5

6.7 ~ 20.5

Rated input(min-max)

kW

0.7 ~ 3.8

1.5 ~ 5.9

1.5 ~ 5.9

SCOP

4.31

4.21

4.21

Performance Condition: Outdoor air 7℃ / 6℃, Inlet / Outlet water 50℃ / 55℃



Heating

Capacity

kW

4.5 ~ 12.5

6.8 ~ 20.6

6.8 ~ 20.6

Rated input

kW

1.4 ~ 5.1

2.0 ~ 7.7

2.0 ~ 7.7

SCOP

3.30

3.65

3.65

Performance Condition: Outdoor air 35℃ / 24℃, Inlet / Outlet water 12℃ / 7℃



Cooling

Capacity

kW

2.5 ~ 9.1

4.2 ~ 16.5

4.2 ~ 16.5

Rated input

kW

1.9 ~ 6.1

2.8 ~8.9

2.8 ~8.9

EER

2.71

2.78

2.78

Energy class (SCOP)

Outlet water temp. at 35

A++

Outlet water temp. at 55

A++

Refrigerant

Type

R410A

Charged volume

kg

2.3

4.3

4.3

Noise level

Heating

dB(A)

45

48

48

Cooling

dB(A)

46

49

49



Operating temperature range

Cooling

-5 ~ 48

Heating

-30 ~ 48

DHW

-30 ~ 48

Net dimensions (W*D*H)

mm

1005*375*800

1077*377*1460

1077*377*1460

Packed dimensions (W*D*H)

mm

1080*455*960

1150*450*1620

1150*450*1620

Net/Gross weight

kg

66/76

125/138

125/138
