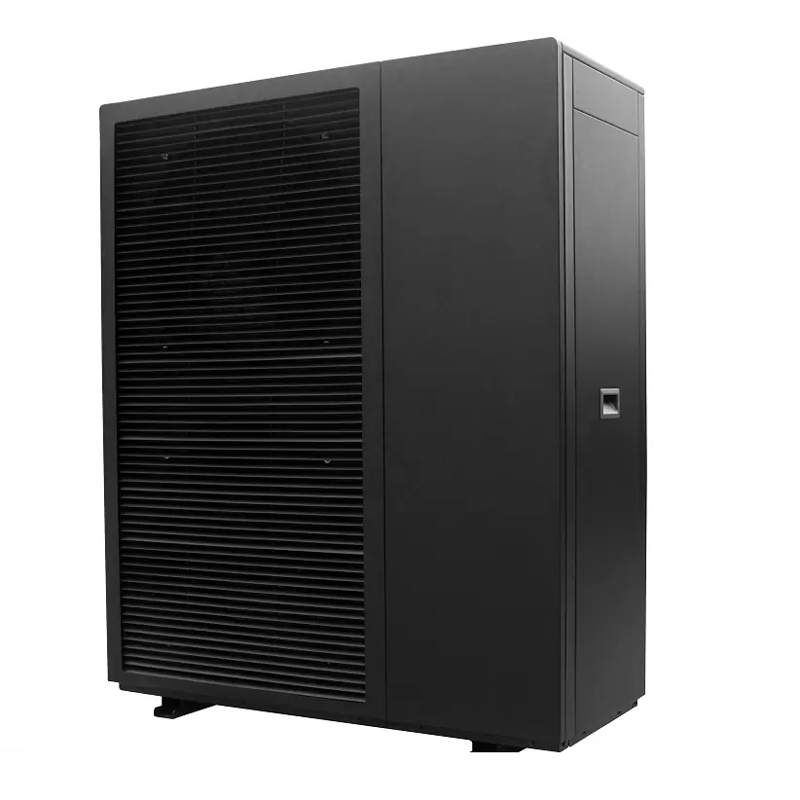

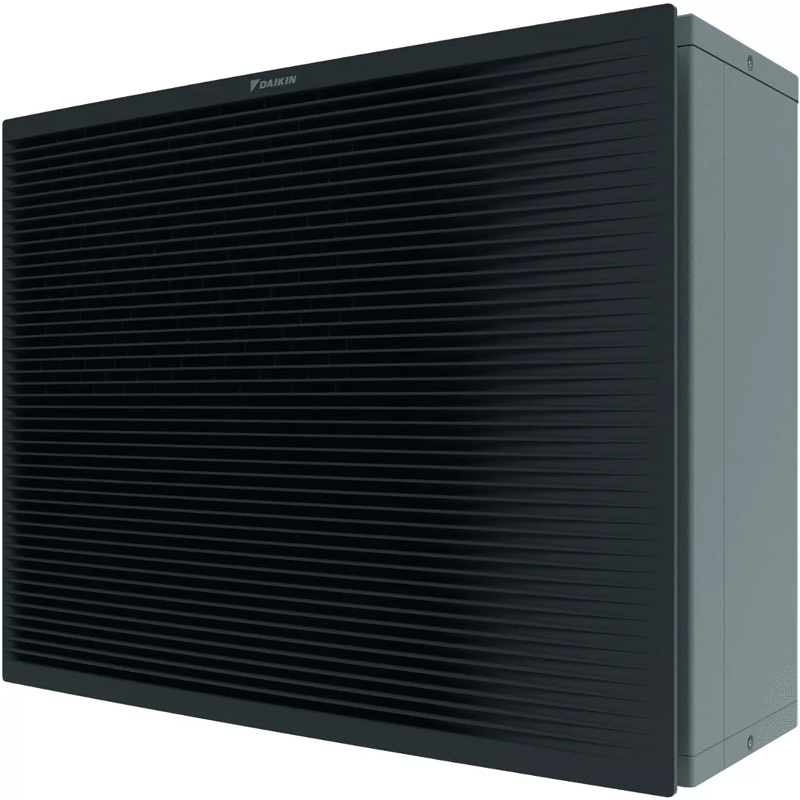

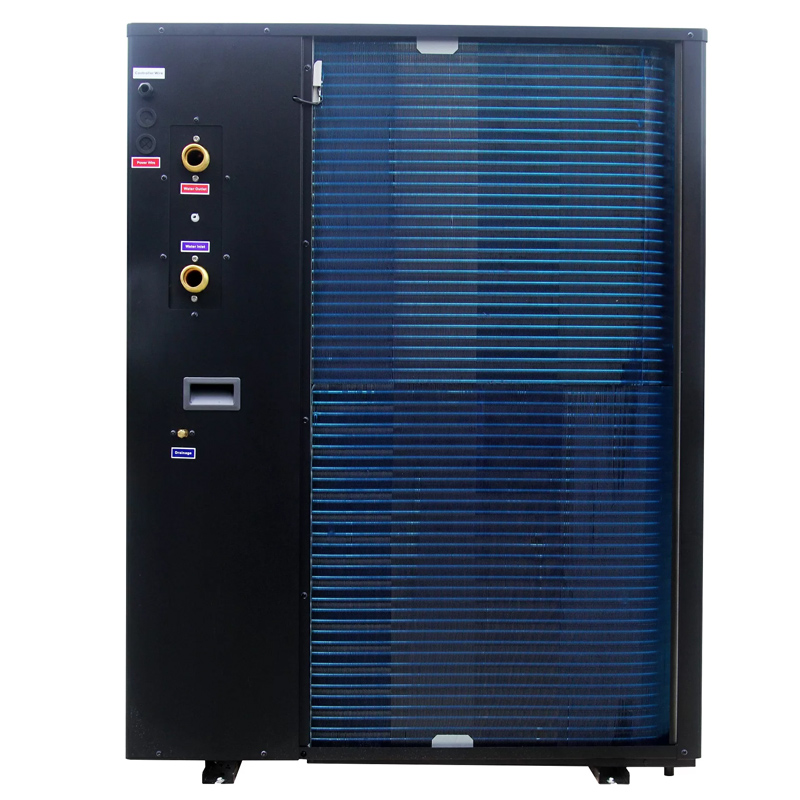

CHD-TC1 DC inverter air source water heater from 9.1kw to 22.1kw

Product Details：
PRICE：$500-$1300/Piece
Negotiable price：According to different size and quantity

Heating capacity:3.0KW-22.1KW

Cooling capacity:1.25KW-17.7KW

Certificate:ROHS/CE/ISO/CCC

After-sale guarantee: One year full warranty

MOQ: 100PCS/Color

Email : info@syheatpump.com

Tel:+86-0757-85496583
Wechat:+86-18367537710
Whatsapp:+86-18367537710

Contact Us

Chat Now

Details

Parameters

Download

Features:

Energy class: A+++

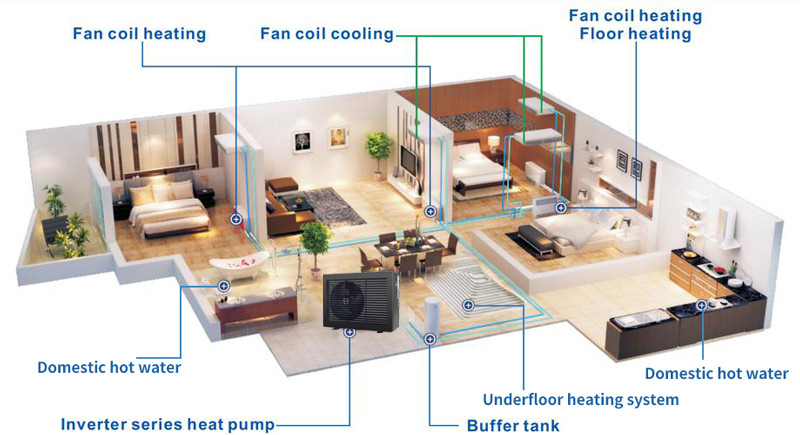

Heating+Cooling+DHW

Full DC inverter Panasonic compressor and fan motor

-30℃ inverter EVI

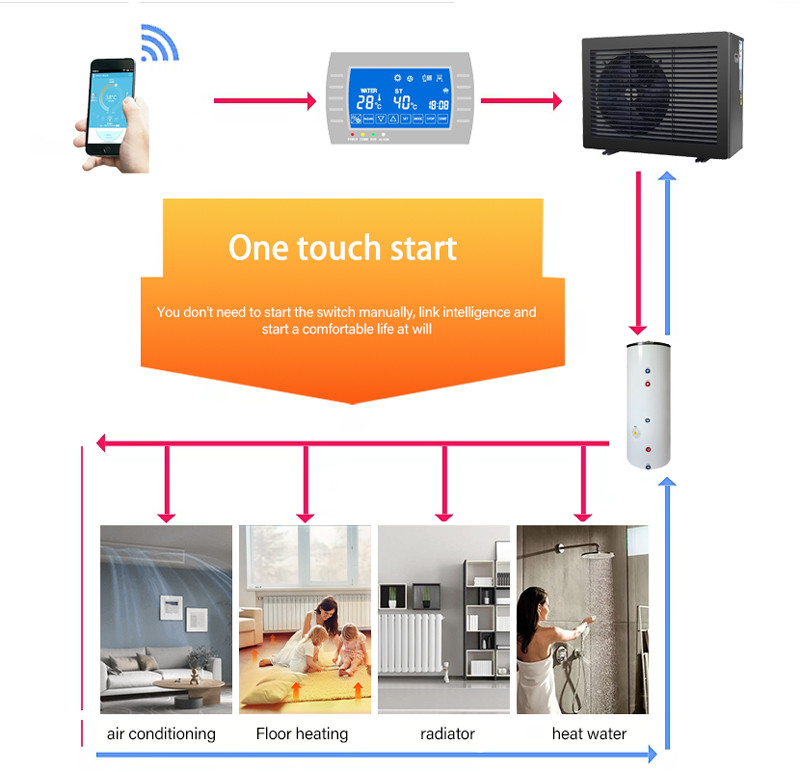

WIFI smart control

R290 refrigerant,low GWP(GWP=3)

Outlet water temperature up to 75℃

Product Details

Product Advantage

Install and Run

Factory Profile

Global Customers

Testing and certification

FAQ

Q1 Are you a manufacturer?

A: Yes, we are a professional heat pump manufacturer with rich experience and complete R&D,production,sales and service supply.

Q2: What is your main product?

Answer: Our main products include DC variable frequency heat pumps, air source heat pump water heaters, swimming pool heat pumps,and EVI heat pumps in cold areas.

Q3: How to place an order?

Answer:Please send us an inquiry or contact us through online services; after receiving your inquiry, we will reply to you

Catalogs,quotations and other information you need.

Q4: Do you provide OEM/ODM customized manufacturing services?

Answer: Yes, we warmly welcome your heat pump OEM/ODM opportunities. We can produce European standard heat pumps under your brand according to yourspecial needs.

Q5: Can I apply to become your heat pump distributor/distributor?

A: Yes, we are currently looking for more heat pump distributors/distributors worldwide, who can distribute our heat pump products in local countries/regions.

Q6： I need to buy in large quantities. Can you provide sample service?

Yes, we can provide sample service, and we have engineers to help you solve installation problems

Technical Data

Model			CHD-006TC1	CHD-012TC1	CHD-012TC3	CHD-018TC1	CHD-018TC3
Power supply		V/Ph/Hz	220~240/1/50	220~240/1/50	380~415/3/50	220~240/1/50	380~415/3/50
Nominal Heating (Max) (A7/6℃,W30/35℃)	Heating Capacity	kW	3.0~9.1	5.5~15.1	5.5~15.1	7.5~22.1	7.5~22.1
	Power Input	kW	0.65~2.29	1.08~3.9	1.08~3.9	1.5~6.8	1.5~6.8
	Current Input	W/W	2.8~9.1	4.5~17.0	1.8~6.9	6.9~31.1	2.7~12.3
Nominal Heating (Max) (A7/6℃,W47/55℃)	Heating Capacity	kW	2.85~8.50	5.0~13	5.0~13	7.0~18.9	7.0~18.9
	Power Input	kW	0.95~2.85	1.75~4.96	1.75~4.96	2.15~7.35	2.15~7.35
	Current Input	W/W	2.9~9.2	4.6~17.1	1.9~7.0	7.0~31.3	2.8~12.4
Nominal Cooling (Max) (A35/24℃,W12/7℃)	Cooling Capacity	kW	1.25~5.8	3.65~10.2	3.65~10.2	4.5~17.7	4.5~17.7
	Power Input	kW	0.65~2.35	1.12~4.16	1.12~4.16	1.80~7.30	1.80~7.30
	Current Input	W/W	2.9~10.4	4.8~17.3	2.0~7.8	7.8~32.4	3.3~12.9
ERP Level（Outlet water temp. at 35℃）		/	A+++	A+++	A+++	A+++	A+++
MAX. input power		kW	3.00	5.50	5.50	7.50	9.00
MAX. input current		A	13.50	24.50	10.50	35.00	16.00
Refrigerant		/	R290	R290	R290	R290	R290
Rated water flow		m³/h	1.00	1.80	1.80	3.00	3.00
Fan quantity		/	1	1	1	2	2
Fan motor type		/	DC inverter
Compressor		/	DC inverter
Circulating pump		/	Inverter type / Built-in
IP Class		/	IPX4
Sound pressure at 1m distance		dB(A)	42	44	44	48	48
Max outlet water temperature		°C	75	75	75	75	75
Water piping connections		/	DN 25 (1")	DN 25 (1")	DN 25 (1")	DN 32 (1-1/4")	DN 32 (1-1/4")
Water Pressure drop(max)		kPa	20	25	25	60	60
Operating temperature range (Heating mode)		°C	-30~45
Operating temperature range (Cooing mode)		°C	16~45
Unpacked Dimensions ( L×D×H )		mm	1150×410×800	1285×455×930	1285×455×930	1285×455×1350	1285×455×1350
Packed Dimensions ( L×D×H )		mm	1300×485×950	1450×530×1050	1450×530×1050	1450×530×1450	1450×530×1450
UnPacked Weight		kg	90	110	110	145	145
Packed Weight		kg	115	125	125	160	160
