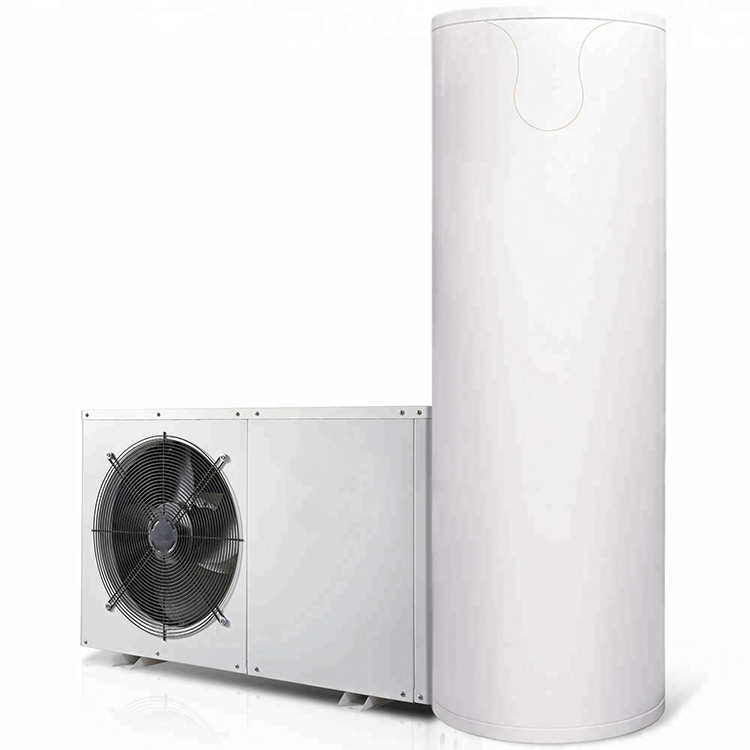

split sanitary water cycle heat pump HW-TA1

Product Details:
PRICE:$500-$1300/Piece
Negotiable price:According to different size and quantity

Heating capacity:3.6KW/5.4KW/7.6KW/10.8KW/13.2KW/18.8KW

Hot water yield:80L/H,120L/H,165L/H,230L/H,285L/H,400L/H

Certificate:ROHS/CE/ISO/CCC

After-sale guarantee: One year full warranty

MOQ: 100PCS/Color

Email : info@syheatpump.com

Tel:+86-0757-85496583
Wechat:+86-18367537710
Whatsapp:+86-18367537710

Chat Now
Details
Parameters
Download


Features:

Efficien heat pump specialized compressor.

Micro-channel heat exchangers greatly improve units performance.

Fluorine cycle,environment-friendly refrigerantR410A.Less installation space,easy installation&maintenance

The evaporator is larger than usual size to keep its high efficiency. Separating the water from electricity or any other hazard material, more safer.

High hot water temperature max. up to 55 ºC

Product Details







Product Advantage




Install and Run


Factory Profile



Global Customers


Testing and certification


FAQ

Q1 Are you a manufacturer?

A: Yes, we are a professional heat pump manufacturer with rich experience and complete R&D,production,sales and service supply.


Q2: What is your main product?

Answer: Our main products include DC variable frequency heat pumps, air source heat pump water heaters, swimming pool heat pumps,and EVI heat pumps in cold areas.


Q3: How to place an order?

Answer:Please send us an inquiry or contact us through online services; after receiving your inquiry, we will reply to you

Catalogs,quotations and other information you need.


Q4: Do you provide OEM/ODM customized manufacturing services?

Answer: Yes, we warmly welcome your heat pump OEM/ODM opportunities. We can produce European standard heat pumps under your brand according to yourspecial needs.


Q5: Can I apply to become your heat pump distributor/distributor?

A: Yes, we are currently looking for more heat pump distributors/distributors worldwide, who can distribute our heat pump products in local countries/regions.


Q6: I need to buy in large quantities. Can you provide sample service?

Yes, we can provide sample service, and we have engineers to help you solve installation problems


Technical Data

Model No.

HW-004TA1

HW-006TA1

HW-008TA1

HW-010TA1

HW-012TA1

HW-018TA1

Power Supply

220~240V/1/50Hz

220~240V/1/50Hz

220~240V/1/50Hz

220~240V/1/50Hz

220~240V/1/50Hz

380~415V/3/50Hz

Heating Capacity at Air 20℃/15℃, Water Temperature from 15 to 55℃

Heating Capacity(kW)

3.6

5.4

7.6

10.8

13.2

18.8

Power Input(kW)

0.86

1.26

1.81

2.54

3.17

4.56

COP

4.18

4.29

4.20

4.25

4.16

4.12

Max Power Input(kW)

1.45

2.01

2.75

3.02

4.51

6.02

Max Current(A)

6.5

9.0

12.0

15.2

23.0

11.0

Rated Hot Water(L/h)

80

120

165

230

285

400

Refrigerant

R410A

R410A

R410A

R410A

R410A

R410A

Expansion Valve

Electronic

Electronic

Electronic

Electronic

Electronic

Electronic

Air Flow Direction

Horizontal

Horizontal

Horizontal

Horizontal

Horizontal

Horizontal

Water Pump inside

Yes

Yes

Yes

Yes

Yes

No

Water Pressure Drop(kPa)

35

35

40

45

45

45

Net Dimensions(L*W*H)(mm)

936*385*550

936*385*550

1011*420*614

986*420*798

986*420*798

1000*375*1320

Package Dimensions(L*W*H)(mm)

1030*445*592

1030*445*592

1105*480*657

1158*560*1017

1158*560*1017

1070*445*1440

Working temperature range(℃)

-15~43

-15~43

-15~43

-15~43

-15~43

-15~43

Noise(dB(A))

47

49

52

52

53

54

Net Weight(kg)

50

54

68

68

85

149

Water connection(mm)

20

20

20

20

20

25
