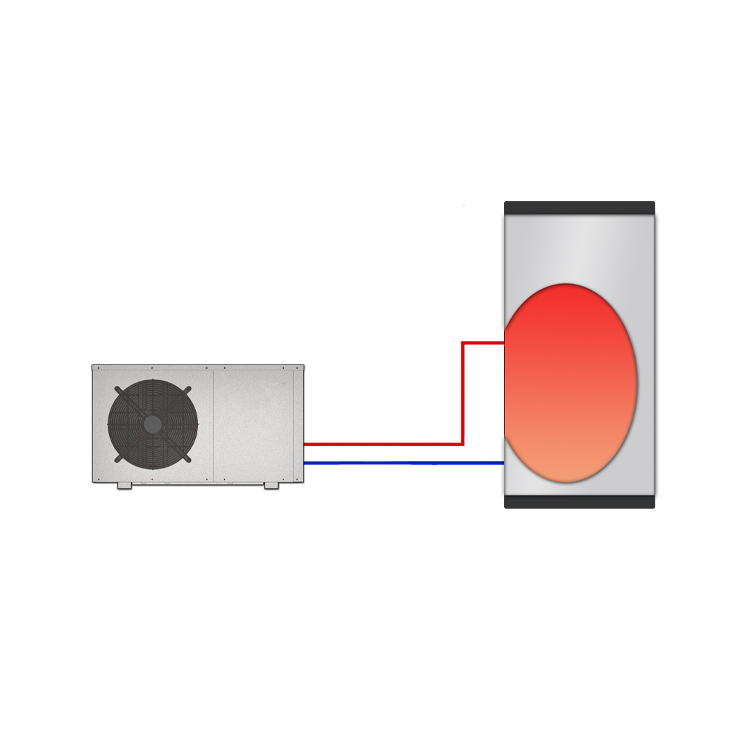

split sanitary heat pump with hot water tank SADC-A

Product Details:
PRICE:$500-$1200/Piece
Negotiable price:According to different size and quantity

Heating capacity:3.25KW/4.8KW

Hot water yield:70L/H,100L/H

Certificate:ROHS/CE/ISO/CCC

After-sale guarantee: One year full warranty

MOQ: 100PCS/Color

Email : info@syheatpump.com

Tel:+86-0757-85496583
Wechat:+86-18367537710
Whatsapp:+86-18367537710

Chat Now
Details
Parameters
Download


Features:

Efficien heat pump specialized compressor.

Micro-channel heat exchangers greatly improve units performance.

Fluorine cycle,environment-friendly refrigerantR410A.Less installation space,easy installation&maintenance

The evaporator is larger than usual size to keep its high efficiency. Separating the water from electricity or any other hazard material, more safer.

High hot water temperature max. up to 55 ºC

Product Details




Product Advantage




Install and Run


Factory Profile



Global Customers


Testing and certification


FAQ

Q1 Are you a manufacturer?

A: Yes, we are a professional heat pump manufacturer with rich experience and complete R&D,production,sales and service supply.


Q2: What is your main product?

Answer: Our main products include DC variable frequency heat pumps, air source heat pump water heaters, swimming pool heat pumps,and EVI heat pumps in cold areas.


Q3: How to place an order?

Answer:Please send us an inquiry or contact us through online services; after receiving your inquiry, we will reply to you

Catalogs,quotations and other information you need.


Q4: Do you provide OEM/ODM customized manufacturing services?

Answer: Yes, we warmly welcome your heat pump OEM/ODM opportunities. We can produce European standard heat pumps under your brand according to yourspecial needs.


Q5: Can I apply to become your heat pump distributor/distributor?

A: Yes, we are currently looking for more heat pump distributors/distributors worldwide, who can distribute our heat pump products in local countries/regions.


Q6: I need to buy in large quantities. Can you provide sample service?

Yes, we can provide sample service, and we have engineers to help you solve installation problems


Technical Data

Model No.

SADC-70/150A

SADC-70/200A

SADC-100/200A

SADC-100/300A

Heating capacity (W)

3250

3250

4800

4800

Hot water yield (L/h)

70

70

100

100

Heating Capacity at Air 20°C/15°C, Water Temperature from 15°C to 55°C

Input power (W)

814

814

1136

1136

Rated current (A)

3.9

3.9

5.3

5.3

Max. input power (W)

2650

2650

3500

3500

Max. input current (A)

12.3

12.3

16.2

16.2

Starting current (A)

16.0

16.0

22.0

22.0

COP

3.99

3.99

4.23

4.23

Auxiliary electric heater (W)

1500

1500

1500

1500

Heating type

Fluorine Cycle

Fluorine Cycle

Fluorine Cycle

Fluorine Cycle

Refrigerant type

R410A

R410A

R410A

R410A

Noise (dB(A))

≤50

≤50

≤52

≤52

Running ambient temperature  (ºC)

-7~43

-7~43

-7~43

-7~43

Main Unit size (mm)

680*250*440

680*250*440

780*300*545

780*300*545

Packing size (mm)

790*355*530

790*355*530

905*380*590

905*380*590

Net Weight / Gross Weight (KG)

25/30

25/30

32/40

32/40

Water tank Model

SX-150D

SX-200D

SX-200D

SX-300D

Water tank volume (L)

150

200

200

300

Water tank size (mm)

Φ440*1696

Φ500*1716

Φ500*1716

Φ630*1555

Water tank Packing size (mm)

530*530*1730

610*610*1750

610*610*1750

700*700*1710

Water tank Net Weight / Gross Weight (KG)

55/64

70/79

70/79

90/110
