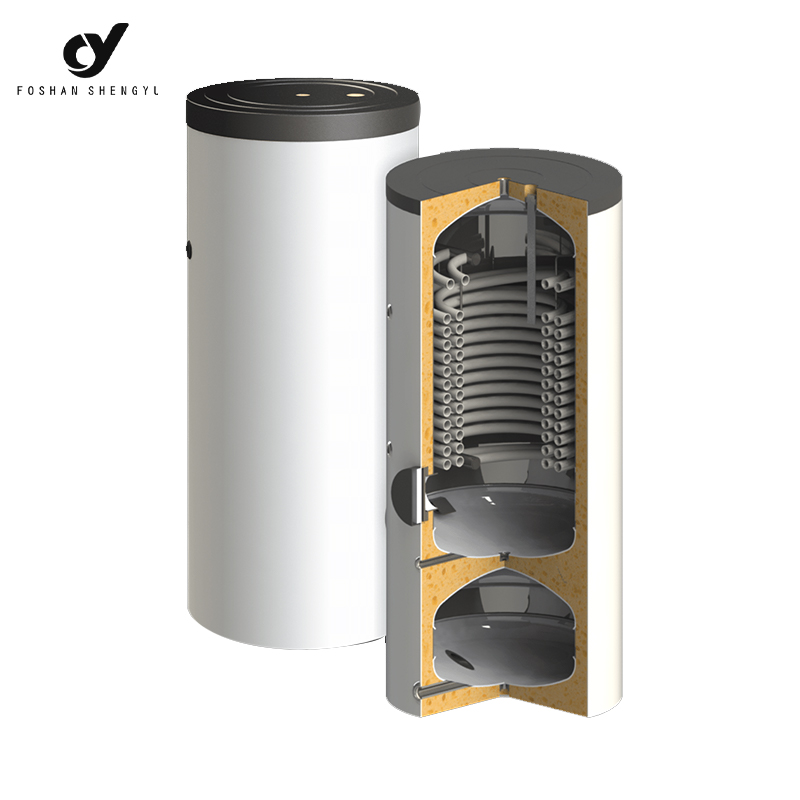

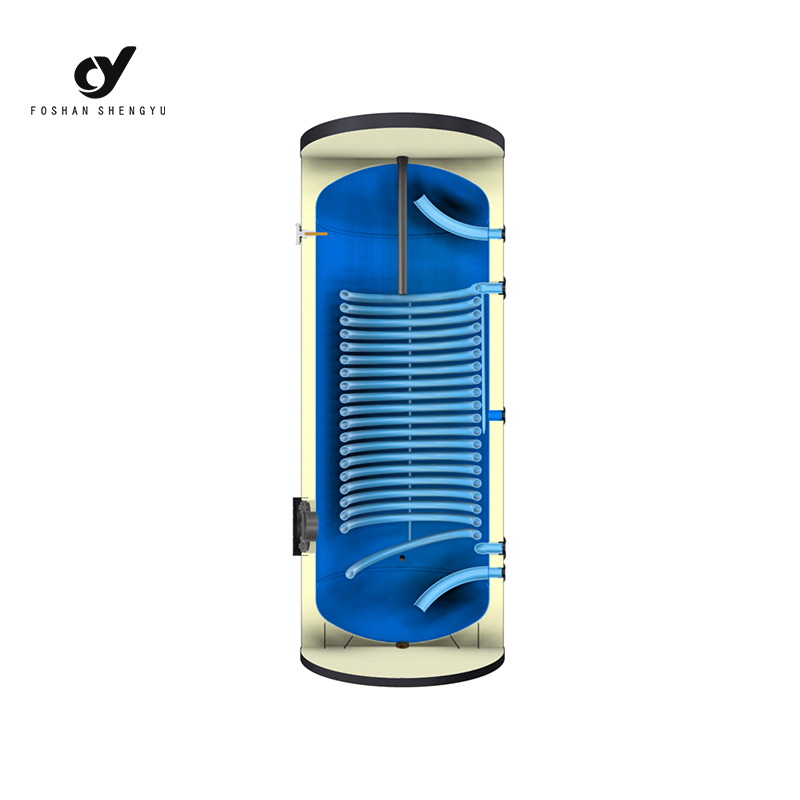

Wet enamel glass lined solar energy water storage tank
Email : info@syheatpump.com

Tel:+86-0757-85496583
Wechat:+86-18367537710
Whatsapp:+86-18367537710

Chat Now
Details
Parameters
Download

Features:

* OEM/ODM avaiable.
* Being made of 2.0mm or 2.5mm cold rolled enamel steel, anti-corrosion resistance.
* With optional built-in
Φ32 enameled heat exchange coils.
* Tank type options:Vertical or Horizontal;Ground or wall mounted.
* 160L/200L/300L/400l/500L or lager capacity choice.
* Work as air source heat pump buffer tank .
* Electric heater 1.0 KW,2.0KW,3.0KW /temperature and pressure relief valve  are optional.

Product Details





Factory Profile




Global Customers


Testing and certification


FAQ

Q1 Are you a manufacturer?

A: Yes, we are a professional heat pump manufacturer with rich experience and complete R&D,production,sales and service supply.


Q2: What is your main product?

Answer: Our main products include DC variable frequency heat pumps, air source heat pump water heaters, swimming pool heat pumps,and EVI heat pumps in cold areas.


Q3: How to place an order?

Answer:Please send us an inquiry or contact us through online services; after receiving your inquiry, we will reply to you

Catalogs,quotations and other information you need.


Q4: Do you provide OEM/ODM customized manufacturing services?

Answer: Yes, we warmly welcome your heat pump OEM/ODM opportunities. We can produce European standard heat pumps under your brand according to yourspecial needs.


Q5: Can I apply to become your heat pump distributor/distributor?

A: Yes, we are currently looking for more heat pump distributors/distributors worldwide, who can distribute our heat pump products in local countries/regions.


Q6: I need to buy in large quantities. Can you provide sample service?

Yes, we can provide sample service, and we have engineers to help you solve installation problems



Model


G160L15ST

G200L15ST

G300L15ST

G400L15ST

G500L15ST

Capacity

L

160

200

300

400

500

Inner tank diameter

mm

Φ440

Φ440

Φ530

Φ580

Φ620

Out shell diameter

mm

Φ540

Φ540

Φ630

Φ680

Φ720

Outer tank length

mm

1300

1580

1640

1780

1850

Inner tank material

mm

       Cold   rolled enamel steel

Out shell material

mm

        galvanized   steel with painting / stainless stell / PU

Out shell color


        white   / silver-grey / blue /red / golden / stainless stell

Max.working pressure

bar

 8

 8

 8

8

8

Max.testing pressure

bar

10

 10

 10

10

10

Max.running temperature

 90

 90

 90

90

90








Inner Coil size

mm

Φ32*7.5m length/0.76m²

Φ32*10.6m length/0.76m²

Φ32*14.5m length/1.46m²

Φ32*18m length/1.82m²

Φ32*31.6m length/3.2m²

Heating loss

W/K

 0.85

 0.92

 1.29

1.82

2.12

Standing loss

W

 35

 38

 45

51

65

ERP Class


 C

   C

C

C

C

Electrical heater

kw

 1.5

 1.5

 1.5

1.5

1.5

Mg.Anode rod

mm

        Φ22*300

Water connection


    G / BSP   / NPT 3/4"

Packing size

mm

L:555

L:555

L:645

L:705

L:753

W:555

W:555

W:645

W:705

W:753

H:1370

H:1650

H:1710

H:1850

H:1920
