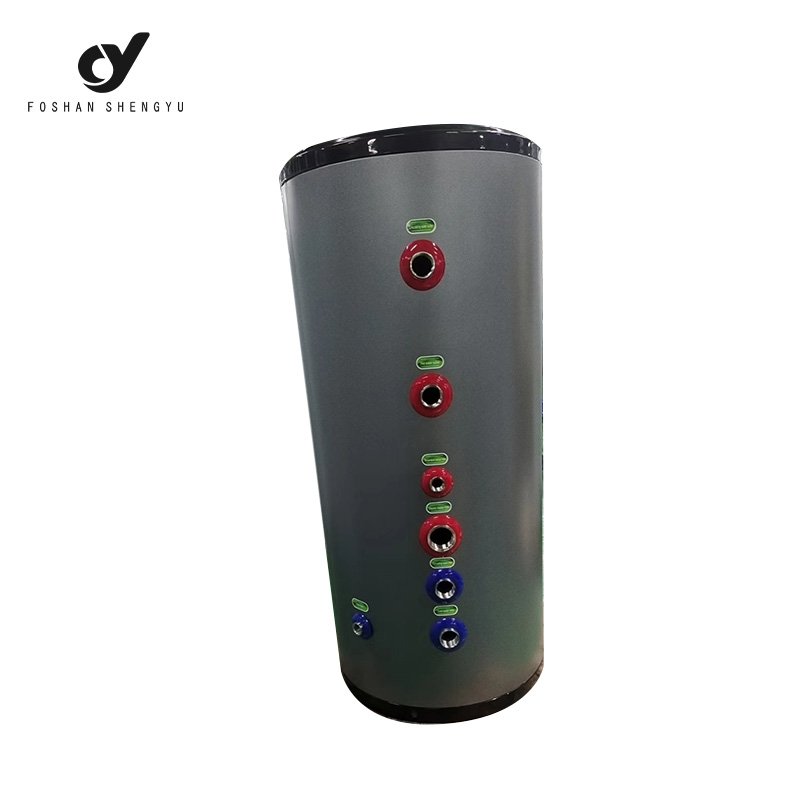

Stainless steel hot water storage tank for heat pump

Product Details：

PRICE：$109-$700/Piece
Negotiable price：According to different size and quantity

Capacity:100L-1000L

Certificate:ROHS/CE/ISO/CCC

After-sale guarantee: One year full warranty

MOQ: 100PCS/Color

Email : info@syheatpump.com

Tel:+86-0757-85496583
Wechat:+86-18367537710
Whatsapp:+86-18367537710

Contact Us

Chat Now

Details

Parameters

Download

Heat pump hot water tank characteristic:

Tank capacity available from 50L to 1000L.

Certified by ROHS, CE.

100L, 150L, 200L, 300L,400L,500L tanks with Europe Union Energy Efficiency Class B.

Bigger size magnesium rod, longer service life.

Suit for air source heat pump system.

Air source heater tank specification:

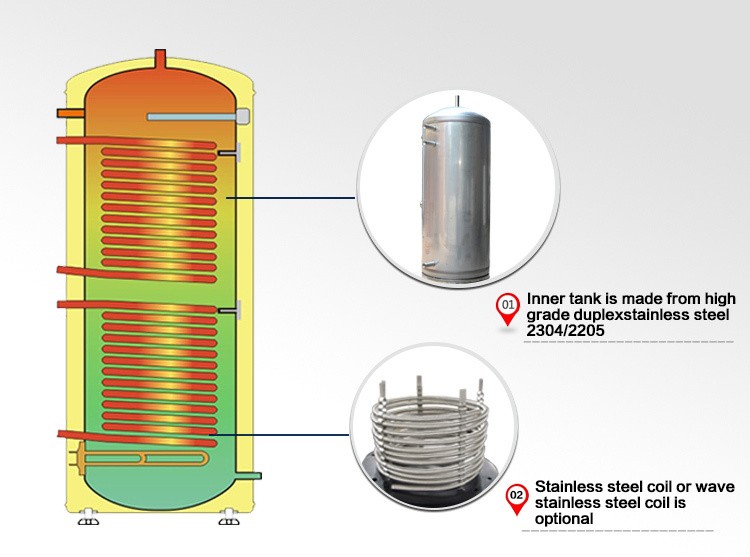

1. Inner tank: Stainless steel SS304-2B / SS316L.

2. Outer tank: Galvanized steel

3. Insulation layer: PU foam, 40Kg/m³ high density

4. Tank capacity: 100L, 150L, 200L, 300L,400L,500L

5. Heat exchanger coil: Stainless steel SS316 pipe,bellow coil or seamless coil option

6. Heat exchanger testing pressure: 3.0Mpa

7. Heat exchanger working pressure: 1.8Mpa

8. Water tank working pressure: 0.6Mpa

Max working temperature:90°C

Air source hot water tank with inner coil for heat exchange

Parameter table:

Model	Tank capacity	Energy efficiency class	Heat exchanger		Refrigerant		Loading Qty. (set)
Model	(Liters)	Energy efficiency class	Dia. (mm)	Len. (m)	inlet	outlet	20GP	40GP	40HQ
S150L20D	150	B	Φ9.52mm	25m	3/8" M	1/4" M	53	112	112
S200L20D	200	B	Φ9.52mm	25m	3/8" M	1/4" M	39	84	108
S250L20D	250	B	Φ9.52 / Φ12.7	30m	3/8" / 7/16" M	1/4" M	39	79	100
S300L20D	300	B	Φ9.52 / Φ12.7	30m	3/8" / 7/16" M	1/4" M	27	54	54
S400L20D	400	B	Φ12.7mm	40m	7/16" M	1/4" M	27	57	64
S500L20D	500	B	Φ12.7mm	40m	7/16" M	1/4" M	24	45	48

Accessories:

	- Used for tank pressure release - Working temperature: 98°C - Working pressure: 7 Bar			- Acting as both none-return valve (prevention from flowing back) and over pressure valve under 0.8Mpa - Material: brass.
Item	Size	Quantity	Item	Size			Quantity
Temperature & Pressure relief valve	3/4 inch	1 unit	Safety valve	3/4 inch			1 unit

	- Used for auxiliary heating when sun light is unavailable or heat pump working temperature is very low - Voltage/power:220V-240V,20KW,50HZ/60HZ - Material: red copper -Thermostat 75°C，thermal cut temperature: 98°C					- to automatically allow air to enter into the piping system to prevent vacuum conditions that could siphon the water from the system and damage water heater/tank equipment - Material: brass.
Item	Size		Quantity		Item	Size		Quantity
Electric heater	3/4 inch		1 unit		Suction valve	3/4 inch		1 unit

	- Used for tank protection - Φ28 x 600mm length
Item	Size		Quantity
Magnesium anode rod	1 inch thread diameter		1 unit

Features:

* OEM/ODM avaiable.
* Being made of SUS304 or SUS316L Steel Stainless steel, anti-corrosion resistance.
* With optional built-in stainless steel corrugated coils.
* Tank type options:Vertical or Horizontal;Ground or wall mounted.
* 100L/150L/200L/300L/400L/500L/800L/1000Llager capacity choice.

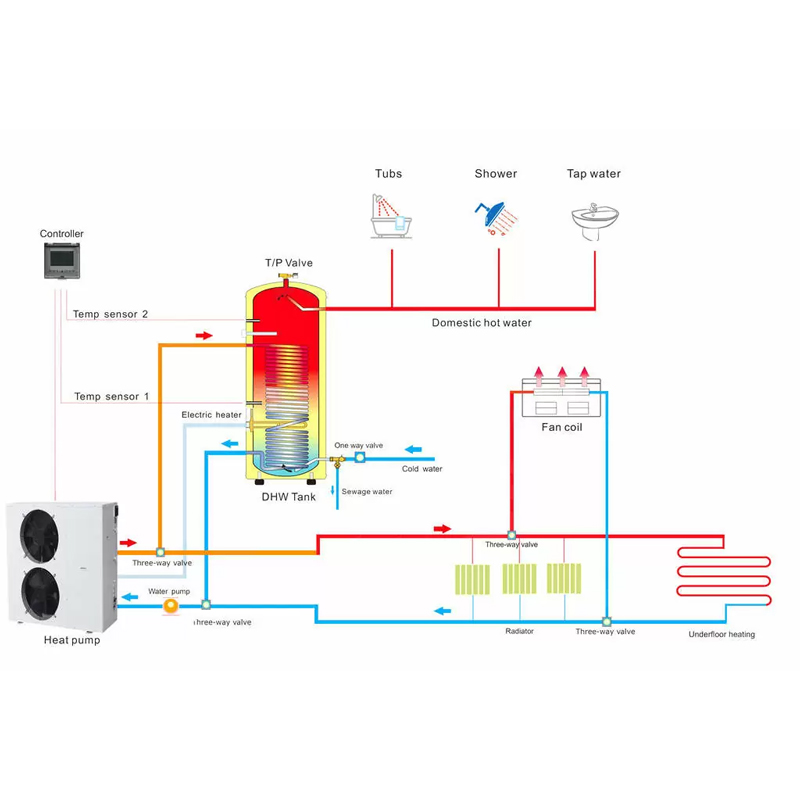

* Work as buffer tank , storage tank ,domestic hot water tank for heat pump system ,solar panel system , boiler & floor heating system .
* Electric heater and control box: 1KW,2KW,3KW，5KW are optional.

Product Details

Install and Run

Factory Profile

Global Customers

Testing and certification

FAQ

Q1 Are you a manufacturer?

A: Yes, we are a professional heat pump manufacturer with rich experience and complete R&D,production,sales and service supply.

Q2: What is your main product?

Answer: Our main products include DC variable frequency heat pumps, air source heat pump water heaters, swimming pool heat pumps,and EVI heat pumps in cold areas.

Q3: How to place an order?

Answer:Please send us an inquiry or contact us through online services; after receiving your inquiry, we will reply to you

Catalogs,quotations and other information you need.

Q4: Do you provide OEM/ODM customized manufacturing services?

Answer: Yes, we warmly welcome your heat pump OEM/ODM opportunities. We can produce European standard heat pumps under your brand according to yourspecial needs.

Q5: Can I apply to become your heat pump distributor/distributor?

A: Yes, we are currently looking for more heat pump distributors/distributors worldwide, who can distribute our heat pump products in local countries/regions.

Q6： I need to buy in large quantities. Can you provide sample service?

Yes, we can provide sample service, and we have engineers to help you solve installation problems

Capacity	L	100	150	200	300	400	500	800	1000
Inner tank diameter	mm	Φ370	Φ370	Φ420	Φ470	Φ600	Φ600	Φ800	Φ800
Out shell diameter	mm	Φ470	Φ470	Φ520	Φ570	Φ700	Φ700	Φ900	Φ900
Out shell Height	mm	1050	1490	1490	1490	1820	2160	1740	2090
Inner tank material	mm	SUS304 / SUS316L
Out shell material	mm	galvanized steel with painting / stainless stell / PU
Out shell color		white / silver-grey / blue /red / golden / stainless stell
Max.working pressure	bar	6	6	6	6	6	6	6	6
Max.testing pressure	bar	10	10	10	10	10	10	10	10
Max.running temperature	℃	90	90	90	90	90	90	90	90
Coil size	m²	0.5	0.8	1.0	1.2	1.5	2.0	2.5	3.5
Heating loss	W/K	0.85	0.92	1.12	1.32	1.5	1.6	1.75	1.96
Standing loss	W	30	33	40	46	52	57	65	70
ERP Class		C	C	C	C	C	C	C	C
Electrical heater	kw	1.5	1.5	1.5	1.5	3	3	3	3
Mg.Anode rod	mm	Φ22*300
Water connection		G / BSP / NPT 3/4"				G / BSP / NPT 1"
Packing size	mm	L:545	L:545	L:595	L:630	L:770	L:770	L:980	L:980
		W:545	W:545	W:595	W:630	W:770	W:770	W:980	W:980
		H:1110	H:1570	H:1570	H:1880	H:1995	H:2235	H:1890	H:2290
