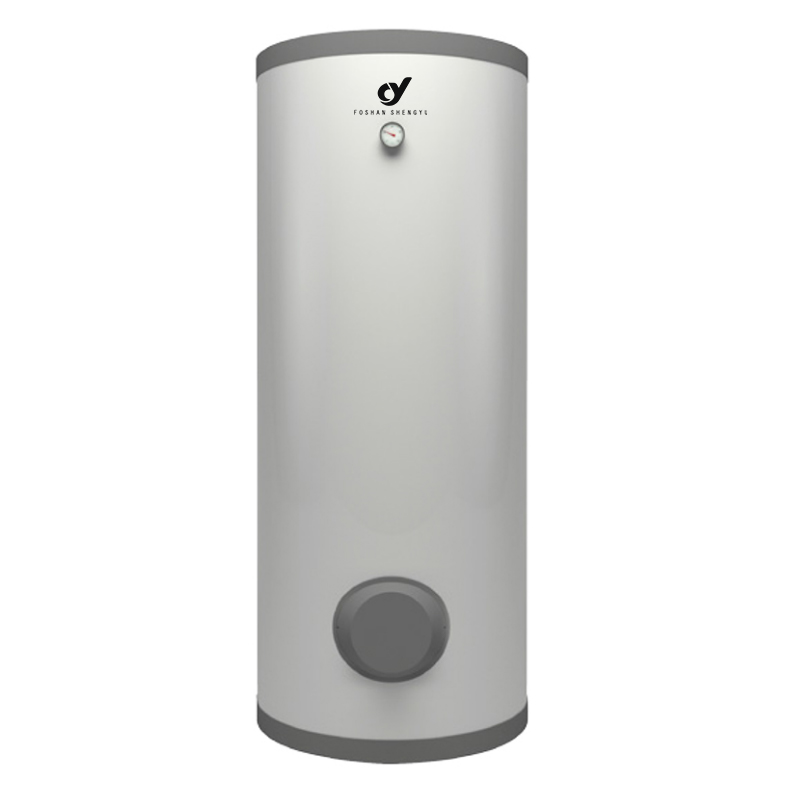

Coll rolled steel plate enamel ceramic buffer water tank for heat pump
Product Details:

PRICE:$71.5-$225/Piece
Negotiable price:According to different size and quantity

Capacity:60L-200L

Certificate:ROHS/CE/ISO/CCC

After-sale guarantee: One year full warranty

MOQ: 100PCS/Color

Email : info@syheatpump.com

Tel:+86-0757-85496583
Wechat:+86-18367537710
Whatsapp:+86-18367537710

Chat Now
Details
Parameters
Download

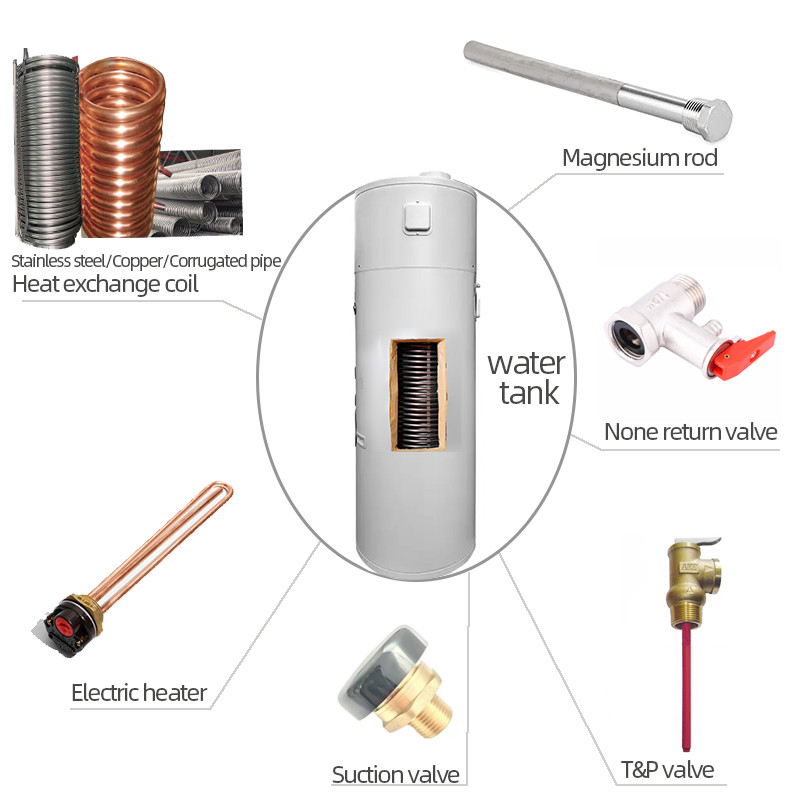

* OEM/ODM avaiable.
* Being made of cold rolled enamel steel, anti-corrosion resistance.
* With optional built-in stainless steel corrugated coils.
* Tank type options:Vertical or Horizontal;Ground or wall mounted.
* 30L/50L/80L/100L or lager capacity choice.
* Work as air source heat pump buffer tank .
* Electric heater 1.0 KW,2.0KW,3.0KW /temperature and pressure relief valve  are optional.

Product Details





Install and Run


Factory Profile




Global Customers


Testing and certification


FAQ

Q1 Are you a manufacturer?

A: Yes, we are a professional heat pump manufacturer with rich experience and complete R&D,production,sales and service supply.


Q2: What is your main product?

Answer: Our main products include DC variable frequency heat pumps, air source heat pump water heaters, swimming pool heat pumps,and EVI heat pumps in cold areas.


Q3: How to place an order?

Answer:Please send us an inquiry or contact us through online services; after receiving your inquiry, we will reply to you

Catalogs,quotations and other information you need.


Q4: Do you provide OEM/ODM customized manufacturing services?

Answer: Yes, we warmly welcome your heat pump OEM/ODM opportunities. We can produce European standard heat pumps under your brand according to yourspecial needs.


Q5: Can I apply to become your heat pump distributor/distributor?

A: Yes, we are currently looking for more heat pump distributors/distributors worldwide, who can distribute our heat pump products in local countries/regions.


Q6: I need to buy in large quantities. Can you provide sample service?

Yes, we can provide sample service, and we have engineers to help you solve installation problems


Model






Capacity

L

60

80

100

200

Inner tank diameter

mm

 Φ370

 Φ370

 Φ370

Φ410

Out shell diameter

mm

 Φ470

 Φ470

 Φ470

Φ510

Outer tank length

mm

730

870

 1023

1664

Inner tank material

mm

       Cold rolled enamel steel

Out shell material

mm

        galvanized steel with painting / stainless stell / PU

Out shell color


        white / silver-grey / blue /red / golden / stainless stell

Max.working pressure

bar

 8

 8

 8

8

Max.testing pressure

bar

10

 10

 10

10

Max.running temperature

 90

 90

 90

90

Heating loss

W/K

 0.65

 0.72

 0.89

1.02

Standing loss

W

 30

 33

 40

46

ERP Class


 C

   C

C

C

Electrical heater

kw

 1.5

 1.5

 1.5

1.5

Mg.Anode rod

mm

        Φ22*300

Water connection


    G / BSP / NPT 3/4"


Packing size

mm

L:540

L:540

L:540

L:580

W:540

W:540

W:540

W:580

H:830

H:970

H:1125

H:1725
