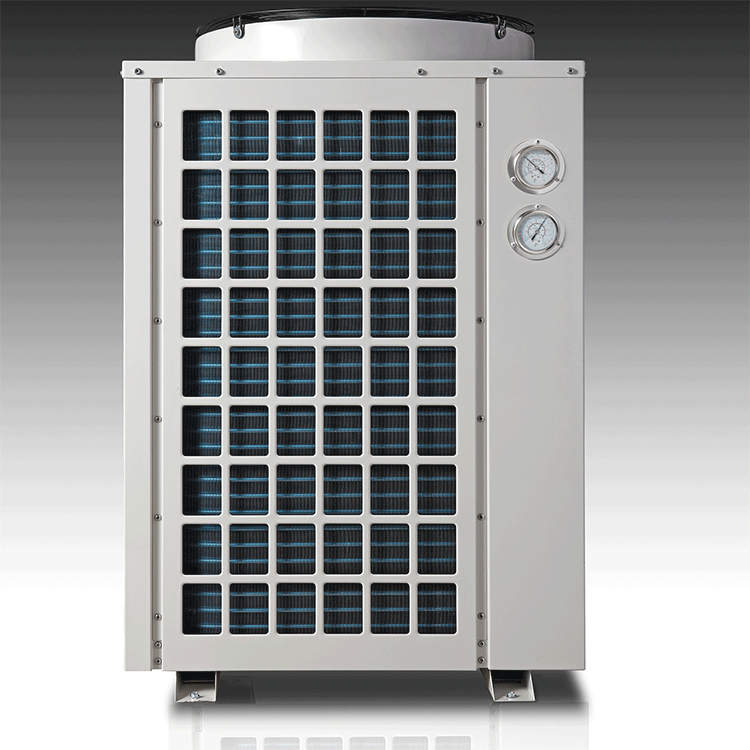

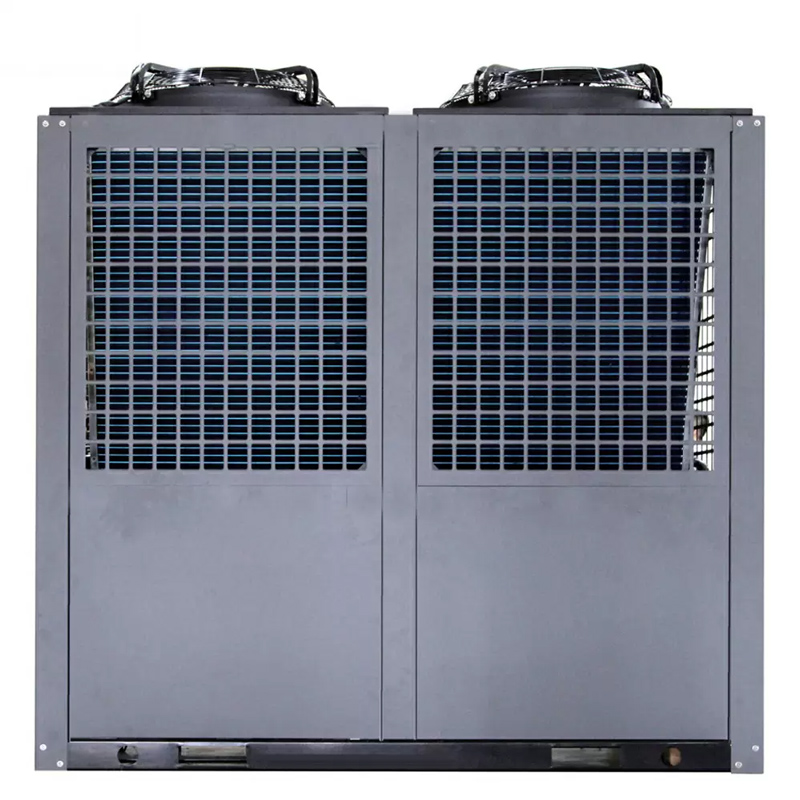

HW-TA1 commercial heat pump from 18kw to 38kw
Product Details:

PRICE:$500-$10000/Piece
Negotiable price:According to different size and quantity

Heating capacity:18KW-38KW

Certificate:ROHS/CE/ISO/CCC

After-sale guarantee: One year full warranty

MOQ: 100PCS/Color

Email : info@syheatpump.com

Tel:+86-0757-85496583
Wechat:+86-18367537710
Whatsapp:+86-18367537710

Chat Now
Details
Parameters
Download
Features:

Modbus: The mainboard has RS 485 communication connection, can communicate via Modbus.

Full-automatic: Adopt the smart controller, doesn't need manual operation.

High Efficiency: Adequate heat transfer area ensures the high COP and performance

High water temperature up to 60ºC, large hot water supply

Multiple protections:The multiple protective design ensures the system long service life and stable operation, including high pressure protection, low pressure protection, high voltage/cur- rent protection, high temperature protection, frosting protection and anti-freeze protection

Environmentally friendly: Use the  environmentally friendly refrigerant R410A

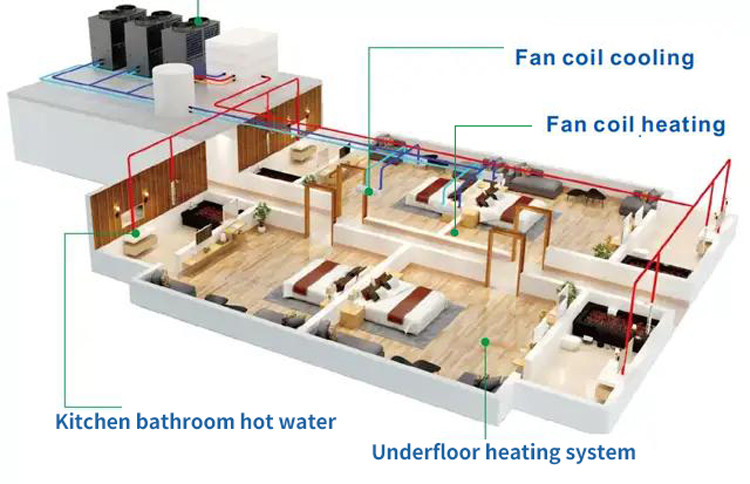

Wide Application:Operation temperature range -15ºC~43ºCsystem can be used for hotel,hosipital, school,factory and soon


Product Details

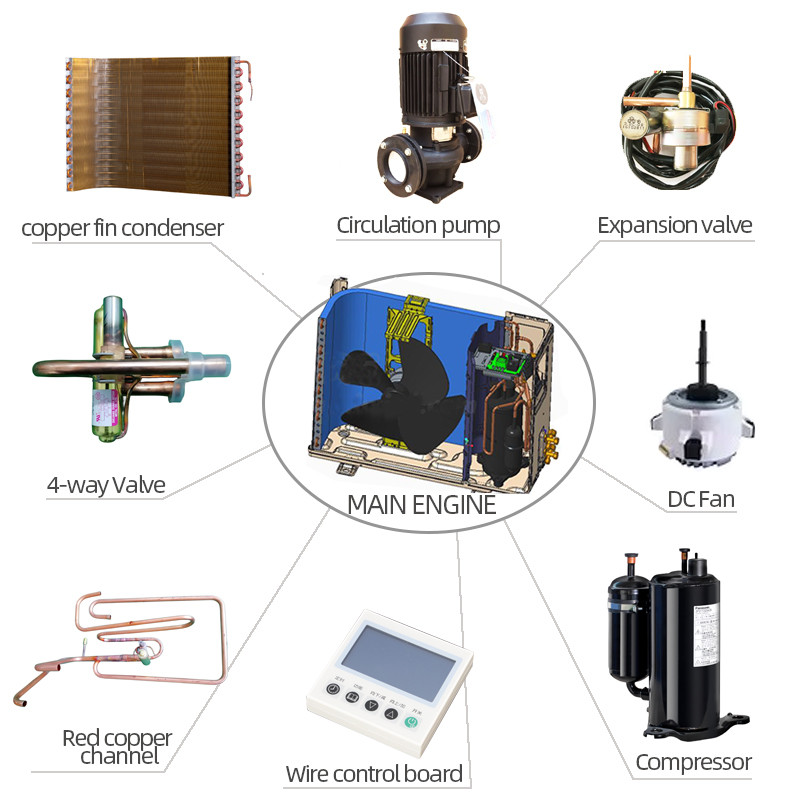

核心配件.jpgProduct Advantage

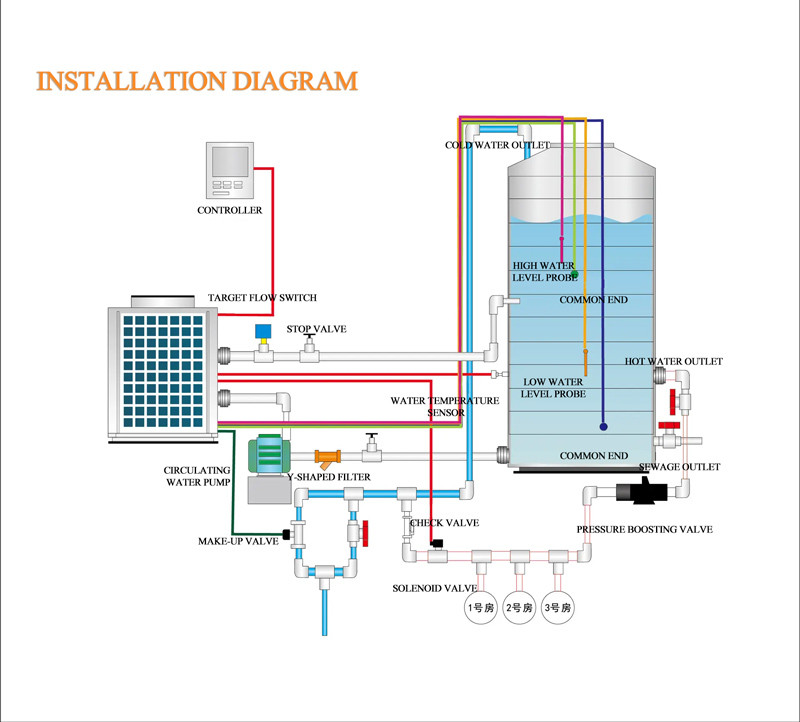

Install and Run

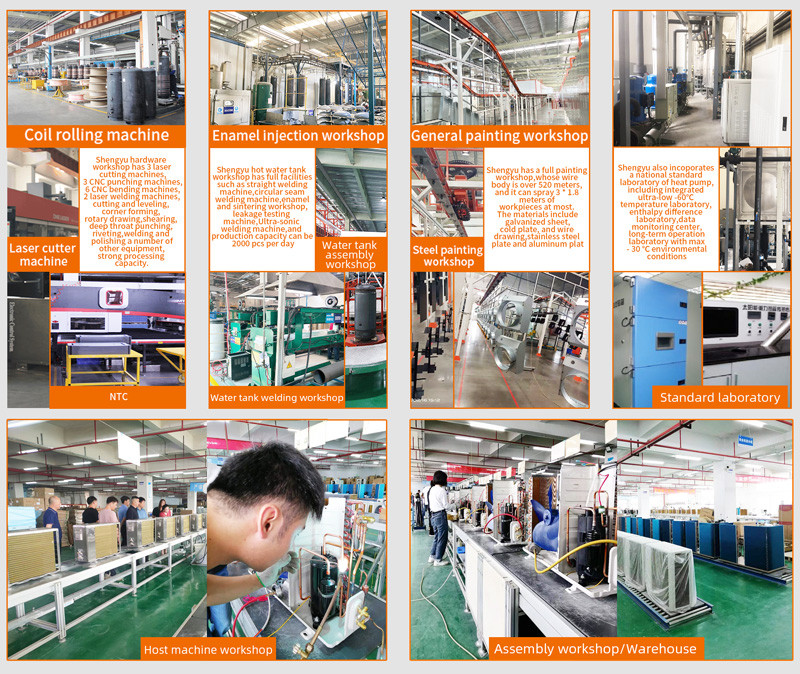

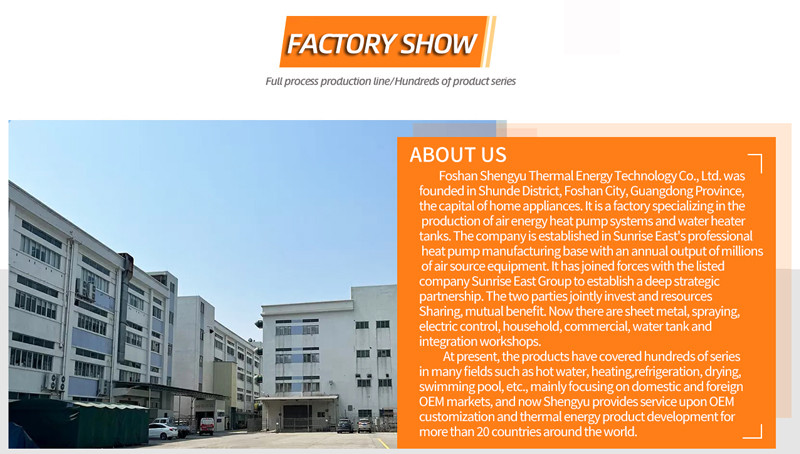

Factory Profile



Global Customers


Testing and certification


FAQ

Q1 Are you a manufacturer?

A: Yes, we are a professional heat pump manufacturer with rich experience and complete R&D,production,sales and service supply.


Q2: What is your main product?

Answer: Our main products include DC variable frequency heat pumps, air source heat pump water heaters, swimming pool heat pumps,and EVI heat pumps in cold areas.


Q3: How to place an order?

Answer:Please send us an inquiry or contact us through online services; after receiving your inquiry, we will reply to you

Catalogs,quotations and other information you need.


Q4: Do you provide OEM/ODM customized manufacturing services?

Answer: Yes, we warmly welcome your heat pump OEM/ODM opportunities. We can produce European standard heat pumps under your brand according to yourspecial needs.


Q5: Can I apply to become your heat pump distributor/distributor?

A: Yes, we are currently looking for more heat pump distributors/distributors worldwide, who can distribute our heat pump products in local countries/regions.


Q6: I need to buy in large quantities. Can you provide sample service?

Yes, we can provide sample service, and we have engineers to help you solve installation problems



Technical Data

Model No.

HW-019TA1

HW-022TA1

HW-032TA1

HW-038TA1

Power Supply

380~415V/3/50Hz

380~415V/3/50Hz

380~415V/3/50Hz

380~415V/3/50Hz

Heating Capacity  (KW)

18.00

22.00

32.00

38.00

Rated Input Power (KW)

4.20

5.15

7.40

8.75

Rated Current (A)

7.51

9.21

13.51

15.64

COP

4.29

4.27

4.32

4.34

Max Power Input(kW)

7.20

8.70

12.00

13.90

Max Current(A)

12.90

15.60

21.60

24.85

Water Temp. Range (℃)

Default 55, 28~60

Default 55, 28~60

Default 55, 28~60

Default 55, 28~60

Working temp. range(℃)

-15~43

-15~43

-15~43

-15~43

Anti-electric chock class

I

I

I

I

Water proof grade

IPX4

IPX4

IPX4

IPX4

Water flow volume(L/h)

4000

4500

6900

8000

Water Pressure Drop(kPa)

50

50

60

60

Compressor qty.

1

1

2

2

Fan motor qty.

1

1

2

2

Color

Black, Matte surface

Air Flow Direction

Vertical

Safeties

LP & HP Cutout, Current & Voltage, Overheat, Temperature, Pressure Protection

Defrosting

Auto and By manual

Dimensions(L*W*H)(mm)

752*691*1000

752*691*1000

1410*748*1000

1410*748*1000

Noise(dB(A))

≤57

≤57

≤59

≤59

Net Weight(kg)

155

155

259

259

Water connection(mm)

male 25

male 25

female 32

female 32

Gross Weight(kg)

163

163

269

269

Packing Dimensions(L*W*H)(mm)

792*741*1151

792*741*1151

1460*798*1151

1460*798*1151
