Wholesale 800W/1200W/2000W Triple Power High-performance Vertical Storage Water Heater SVB420-D

Product Details:
PRICE:$52.5-$77/Piece
Negotiable price:According to different size and quantity
Storage Capacity:30L,50L,80L

Certificate:ROHS/CE/ISO/CCC

After-sale guarantee: One year full warranty

MOQ: 100PCS/Color

Email : info@syheatpump.com

Tel:+86-0757-85496583
Wechat:+86-18367537710
Whatsapp:+86-18367537710

Chat Now
Details
Parameters
Download

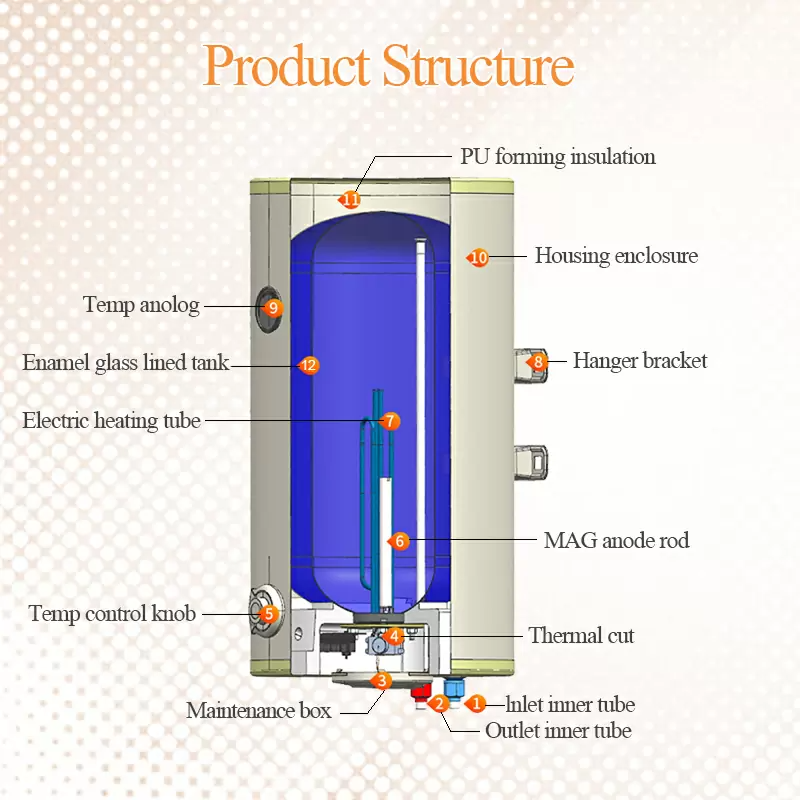

Product features:

Vertical wall hung installation

Digital display

MAG rod for sacrificial protection

Adjustable safety thermostat range 35-75

Relief/non-return valve that allows discharging of the water heater for lay-up

Double flat enamel tank for higher heat efficiency

Over heat protection by capillary thermal cut out

GLASS CERAMIC coating for corrosion protection

G1/2’’ M thread for easy plumbing connection

Dry element optional, incoloy 840 material

Product Details








Customer feedback


Factory Profile





Global Customers


Testing and certification


FAQ

Q1 Are you a manufacturer?

A: Yes, we are a professional Electric Water Heater manufacturer with rich experience and complete R&D,production,sales and service supply.


Q2: What is your main product?

Answer: Our main products include DC variable frequency heat pumps, air source heat pump water heaters, swimming pool heat pumps,and EVI heat pumps in cold areas.


Q3: How to place an order?

Answer:Please send us an inquiry or contact us through online services; after receiving your inquiry, we will reply to you

Catalogs,quotations and other information you need.


Q4: Do you provide OEM/ODM customized manufacturing services?

Answer: Yes, we warmly welcome your heat pump OEM/ODM opportunities. We can produce European standard heat pumps under your brand according to yourspecial needs.


Q5: Can I apply to become your heat pump distributor/distributor?

A: Yes, we are currently looking for more heat pump distributors/distributors worldwide, who can distribute our heat pump products in local countries/regions.


Q6: I need to buy in large quantities. Can you provide sample service?

Yes, we can provide sample service, and we have engineers to help you solve installation problems


Specification

Installation

Vertical  Installation

Certificate

CE/CB approval

Model

SVB420-30D

SVB420-50D

SVB420-80D

Rating Capacity

30L

50L

80L

N.W

16.7

23.1

28.5

G.W

19.7

26

32.2

Rated Voltage & Frequency

230V /50Hz

Rated Power

Triple power 800W/1200W/2000W

Rated Pressure

0.75 MPa

Rank  Waterproof

IPX4

Net Sizemm

680*515*270

919*515*270

1035*320*575

Packing  Sizemm

750*560*330

980*560*330

1100*560*330

Loading quantity

QTY(PCS

QTY/40'HQ

530

418

261

Features

Outer Tank

0.4mm cold rool steel material,  Metal Body-Spray white color

Inner Tank

Double Blue Enamel coated glass lined cold roll steel

Thickness of Enamel coating

0.25~0.65mm

Enamel coating type

Advanced wet method enamel lining

Heating Element

Red copper -durable and with longer lifetime

Capillary type Thermostat

(30~75)±5-automatic temperature control

Capillary type Thermal cut out

93±3--automatic cut off for overheat protection

Power cable and Plug

white color power cable and BS Plug

Anode rode

φ20x200mm-Keep longer lifetime of tank

Safety valve

0.75Mpa Multi-functional safety valve-over pressure protection

Insulation material

polyurethane--environment-friendly NONE CFC injection

Average Insulation thickness

20mm

Warranty

3 years warranty on inner tank
