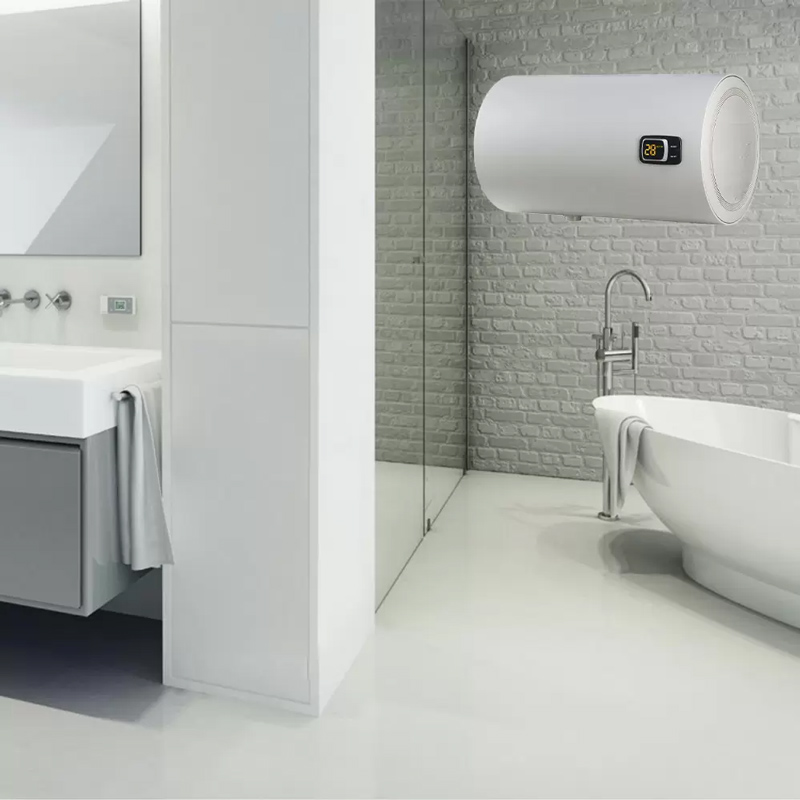

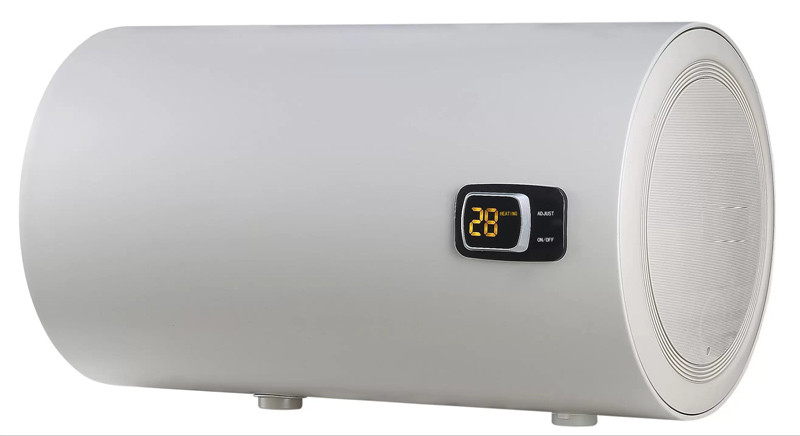

Horizontal storage enamel coating electric water heater SHd15-GD
Email : info@syheatpump.com

Tel:+86-0757-85496583
Wechat:+86-18367537710
Whatsapp:+86-18367537710

Chat Now
Details
Parameters
Download
Product Features:

Horizontal wall hung installation

Heating indicator with digital display

Adjustable safety thermostat range 35-75

Relief/non-return valve that allows discharging of the water heater for lay-up

Highly efficient insulation and extremely low heat losses

Over heat protection by capillary thermal cut out

GLASS CERAMIC coating for corrosion protection

G1/2’’ M thread for easy plumbing connection

Low power density heating tube, a high capacity and constructed in 1.5mm AISI 316L S/S

Product Details







Customer feedback


Factory Profile





Global Customers


Testing and certification


FAQ

Q1 Are you a manufacturer?

A: Yes, we are a professional Electric Water Heater manufacturer with rich experience and complete R&D,production,sales and service supply.


Q2: What is your main product?

Answer: Our main products include DC variable frequency heat pumps, air source heat pump water heaters, swimming pool heat pumps,and EVI heat pumps in cold areas.


Q3: How to place an order?

Answer:Please send us an inquiry or contact us through online services; after receiving your inquiry, we will reply to you

Catalogs,quotations and other information you need.


Q4: Do you provide OEM/ODM customized manufacturing services?

Answer: Yes, we warmly welcome your heat pump OEM/ODM opportunities. We can produce European standard heat pumps under your brand according to yourspecial needs.


Q5: Can I apply to become your heat pump distributor/distributor?

A: Yes, we are currently looking for more heat pump distributors/distributors worldwide, who can distribute our heat pump products in local countries/regions.


Q6: I need to buy in large quantities. Can you provide sample service?

Yes, we can provide sample service, and we have engineers to help you solve installation problems



Installation

Vertical  Installation

Certificate

CE/CB approval

Model

SHd15-30G0D

SHd15-50G0D

SHd15-80G7D

SHd15-100G7D

Rating   Capacity

30L

50L

80L

100L

N.W

13

15.2

23

26

G.W

17.3

20.1

25.0

30.5

Rated   Voltage & Frequency

230V   /50Hz

Rated   Power

1500W

Rated   Pressure

0.75 MPa

Rank  Waterproof

IPX4

Net Sizemm

Φ340*624

Φ340*876

Ø410*935

Ø410*1106

Packing  Sizemm

390*390*670

390*390*920

455*455*970

455*455*1140

Loading   quantity

QTY(PCS

QTY/40'HQ

630

460

320

275

Features

Outer Tank

0.4mm cold rool steel material,  Metal Body-Spray white color

Inner Tank

Blue Enamel coated glass lined cold roll   steel

Thickness   of Enamel coating

0.25~0.65mm

Enamel   coating type

Advanced wet   method enamel technique

Heating   Element

S/S 316L Heating Element -durable and with longer lifetime

Capillary   type Thermostat

(30~75)±5-automatic   temperature control

Capillary   type Thermal cut out

93±3--automatic cut   off for overheat protection

Power   cable and Plug

white color power   cable and BS Plug

Anode rode

φ20x200mm-Keep longer lifetime of tank

Safety   valve

0.75Mpa Multi-functional safety valve-over pressure protection

Insulation   material

polyurethane--environment-friendly NONE CFC injection

Average   Insulation thickness

20mm

Warranty

3 years warranty   on inner tank
