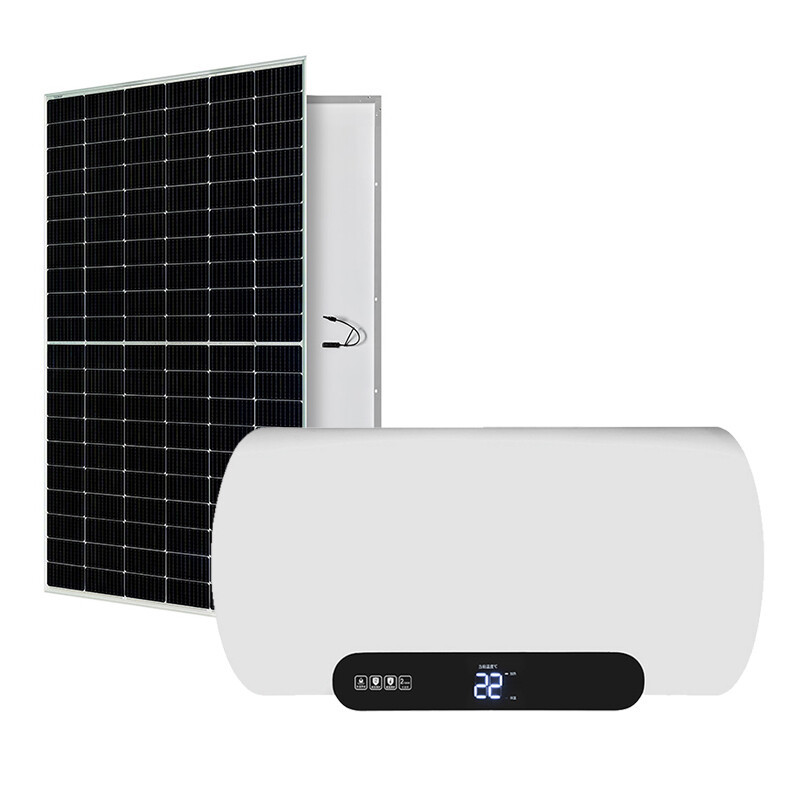

Wholesale Custom Logo 41V 450W Solar Power Water Heater Cost-effective Electric Storage Water Heater With PV Solar Panel

Product Details：

PRICE：$165-$185/Piece
Negotiable price：According to different size and quantity
Storage Capacity:50L,80L

After-sale guarantee: One year full warranty

MOQ: 100PCS/Color

Email : info@syheatpump.com

Tel:+86-0757-85496583
Wechat:+86-18367537710
Whatsapp:+86-18367537710

Contact Us

Chat Now

Details

Parameters

Download

Product features:

Vertical wall hung installation

Touch screen control,ECO mode with sterilization function

Multiple power:DC 565W,AC 2000W

MAG rod for sacrificial protection

Adjustable safety thermostat range 35℃-75℃

Relief/non-return valve that allows discharging of the water heater for lay-up

Double flat enamel tank for higher heat efficiency

Over heat protection by capillary thermal cut out

GLASS CERAMIC coating for corrosion protection

G1/2’’ M thread for easy plumbing connection

Incoloy 840 material heating tube,lower power density

Product Details

Customer feedback

Factory Profile

Global Customers

Testing and certification

FAQ

Q1 Are you a manufacturer?

A: Yes, we are a professional Electric Water Heater manufacturer with rich experience and complete R&D,production,sales and service supply.

Q2: What is your main product?

Answer: Our main products include DC variable frequency heat pumps, air source heat pump water heaters, swimming pool heat pumps,and EVI heat pumps in cold areas.

Q3: How to place an order?

Answer:Please send us an inquiry or contact us through online services; after receiving your inquiry, we will reply to you

Catalogs,quotations and other information you need.

Q4: Do you provide OEM/ODM customized manufacturing services?

Answer: Yes, we warmly welcome your heat pump OEM/ODM opportunities. We can produce European standard heat pumps under your brand according to yourspecial needs.

Q5: Can I apply to become your heat pump distributor/distributor?

A: Yes, we are currently looking for more heat pump distributors/distributors worldwide, who can distribute our heat pump products in local countries/regions.

Q6： I need to buy in large quantities. Can you provide sample service?

Yes, we can provide sample service, and we have engineers to help you solve installation problems

Price list
Installation	Horizontal Installation
Key function	DC&AC versatile model
Model	SHp20-50D	SHp20-80D
Rating Capacity	50L	80L
N.W	18.1	25
G.W	21.5	28.4
Adaptive DC power	42V/565W	42V/565W
Solar panel qty	1 pcs	1 pcs
Solar panel product size/packing size	1pcs22781134*35mm	1pcs22781134*35mm
Solar panel N.W./G.W.	26.3/29.5	26.3/29.5
Rated Voltage & Frequency	220V/50Hz
Rated Power/AC	2000W

Rated Pressure	0.8 MPa
Rank Waterproof	IPX4
Net Size（mm）	φ410mm*726mm	φ480mm*788mm
Packing Size（mm）	555485800	585545920
Loading quantity	QTY(PCS）
QTY/40'HQ	530	418
Features
Outer Tank	0.4mm cold rool steel material, Metal Body-Spray white color
Inner Tank	Double Blue Enamel coated glass lined cold roll steel
Thickness of Enamel coating	0.25~0.65mm
Enamel coating type	Advanced wet method enamel lining
Heating Element	Red copper -durable and with longer lifetime
Capillary type Thermostat	(30~75℃)±5℃-automatic temperature control
Capillary type Thermal cut out	93℃±3℃--automatic cut off for overheat protection
Power cable and Plug	white color power cable and BS Plug
Anode rode	φ20x200mm-Keep longer lifetime of tank
Safety valve	0.75Mpa Multi-functional safety valve-over pressure protection
Insulation material	polyurethane--environment-friendly NONE CFC injection
Average Insulation thickness	20mm
Warranty	3 years warranty on inner tank

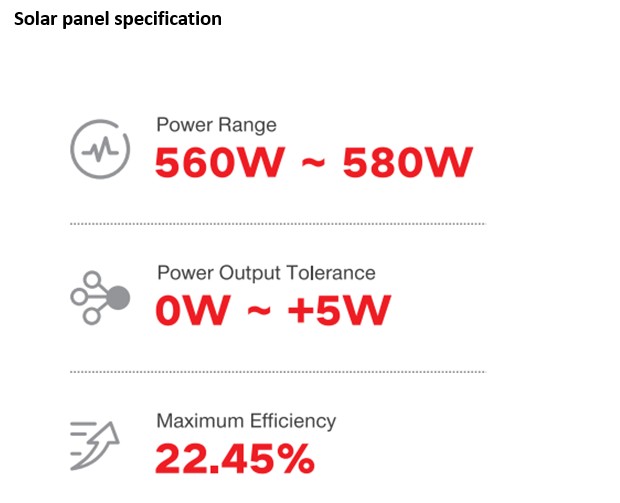

Electric Performance Parameters
Model type	565C(HPM) 72(182)
Nominal Max. Power Pmax(W)	565
Max, Power Voltage Vmp(V)	42.08
Max. Power Current Imp(A)	13.43
Open Circuit Voltage Voc(V)	50.58
Short Circuit Current lIso(A)	14.19
Module Efficiency (%)	21.857
Power Output Tolerance (W)	0-+5w
Structure Performance
Solar Cell Type	182mm N-TopCon Mono Cell (Half Cell)
Solar Cell Arrangement	144pcs(6x24)

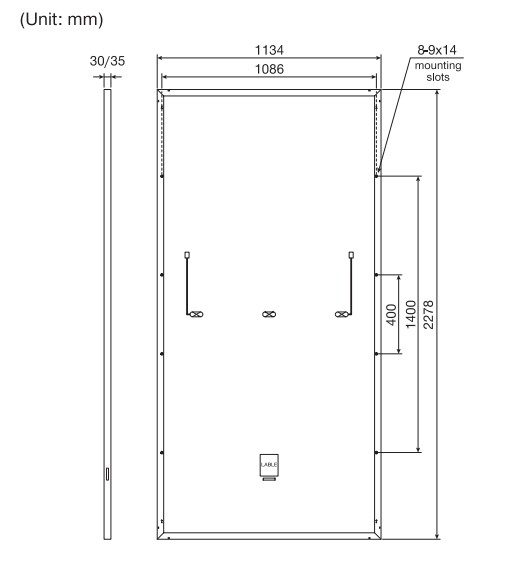

Module Dimension	2278x1134x35mm/30mm
Weight	28.0kg(35mm)/26.3kg(30mm)
Front Glass	3.2mm, highly transparent tempered glass with anti-reflective coating
Back Sheet	White
Frame	Anodized Aluminum Alloy
Junction Box	IP68 rated
Cable	4mm²,portrait 200mm-400mm,lndscape 1400mm Length can be customized
Doide Quantity	3 pcs
Front side/Rear side	5400pa/2400pa

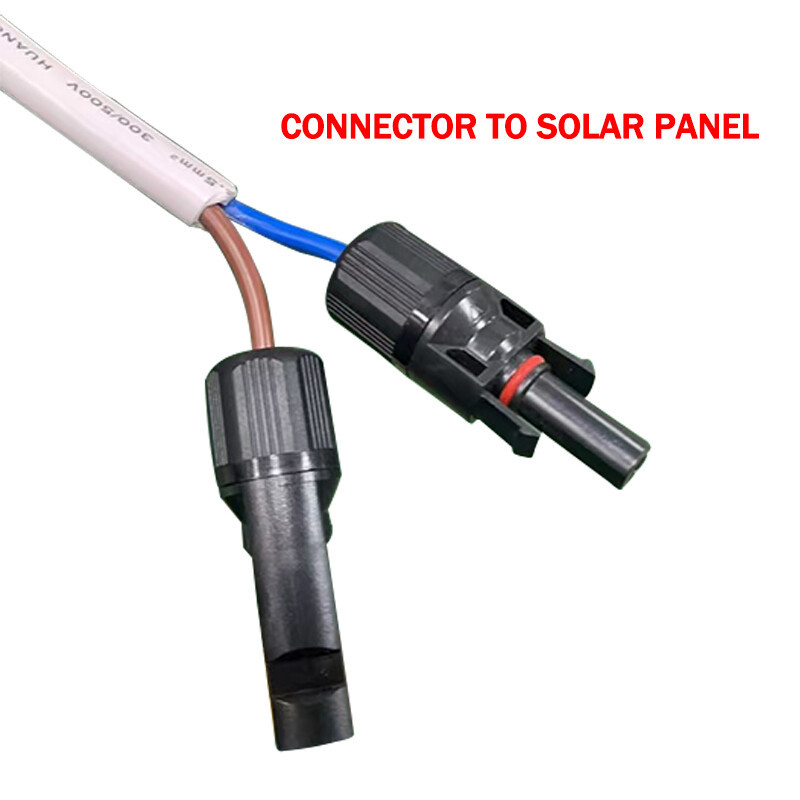

Connector	MC4 Compatible
Per Pallet	31pcs(35mm)/36pcs(30mm)
Per Container(40'HQ)	620pcs(35mm)/720pcs(30mm)
Temperature Characteristics
Nominal Module Operating Temperature	44±2℃
Temperature Coefficient (Isc)	+0.043%
Temperature Coefficient (Voc)	-0.25%
Temperature Coefficient(Pmax)	-0.30%
Maximum Parameters
Working Temperature	-40~+85℃
Maximum System Voltage	1500V DC
Nominal Maximum Fuse Current	25A
